Wall detector Xaver 100 with durable and handled construction for the 3D tracking

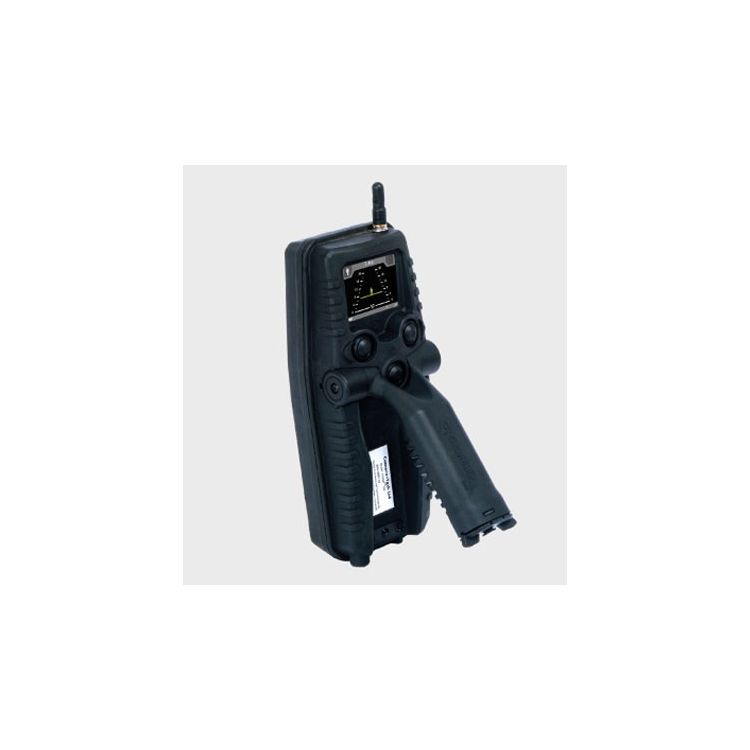

Xaver 100 is the compact and ultra-portable radar sensor which has simple user interface clear and immediate interpretation. Developed with the specific needs of tactical operators in mind, the Xaver 100 provides instant critical situational awareness and target acquisition data.

  • Simple use

    Easy to operate

  • Health friendly

    Safe for human health

  • Clear LCD screen

    Easy to read LCD screen

  • Work time 5h

    Operation time of the Wall scan detector Xaver 100 3,5 hours

Xaver 100 utilizes the same state-of-the-art technology found in the other Xaver systems. A unique, micropower Ultra-Wideband (UWB) sensor that operates at very high bandwidth enables reliable detection and industry-leading object resolution.

The Xaver 100 is a system which is easy to operate and it is completely radiation safe. The Xaver 100 has an optional internal wireless module for full remote control and viewing options.It is designed to provide superior performance while meeting the requirements of ICNIRP-1998 radiation exposure restriction. The device is easy to transport and weighs only 660g with 4 Lithium 123 Batteries.

The Xaver 100 provides critical personal information in real-time. Mathematical algorithms are used to cope with cluttered environments resulting in a highly reliable object presence and distance detection. The XaverNet system is included.

The Wall detector Xaver 100 is an excellent equipment dedicated to professionalists. It often used by police, private security agencies, soldiers, special operation groups in case of dangerous situations.

Xaver 100 helps to make a decision in various operational scenarios such as:

  • Tactical Entry/Assault - Alert operators to the presence of potential threats
  • Hostage Recovery - Quickly determine which spaces are occupied
  • Search & Rescue - Effective detection of trapped or injured people
  • Breaching - Plan for effective and safe entries
  • Force safety - Create a ”Virtual Window” to spot external approaching threats
  • Providing a clear operational advantage - the ability to ”step into the known”

Features of the Wall detector Xaver 100

  • Ultra-portable and compact
  • Optimized ergonomic and rugged design
  • Reliable detection of life behind most common wall materials
  • The Xaver 100 has simple user interface for clear and immediate interpretation
  • Indication of target presence, movement direction, and distance
  • The wall detector Xaver 100 has up to 20m detection range
  • Enables Stand-off operation (within the detection range)
  • Coexistence capability for operation of multiple Xaver 100 units simultaneously
  • Optional internal wireless capability for remote monitoring and control
  • Complies with MIL-STD-810F

Product video



Xaver products are made by CAMEO, who is a specialist in the field of wall-scanning-systems


Specification of the Wall detector radar Xaver 100
Device typeHandheld through-wall radar
Penetrable wall materialsCement, plaster, brick, concrete, reinforced concrete, adobe, stucco, drywall and many other standard building materials
Detection range4m, 8m, 20m
Field of view120° in both Azimuth and Elevation

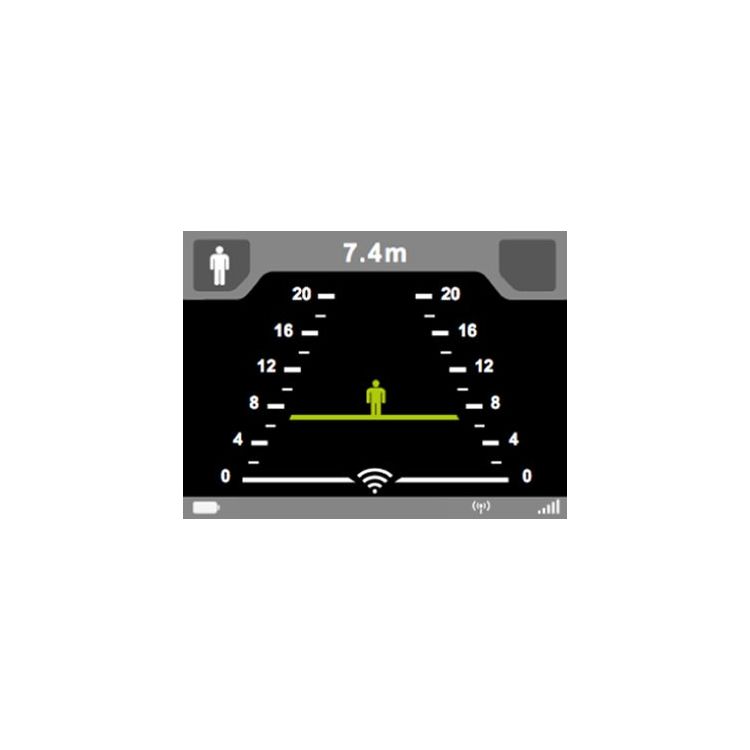

Display modeIndication of target presence, movement direction, and distance
Frequency range3GHz to 10GHz
ResolutionRange: Better than 5cm; Cross Range: Better than 50cm at 8m
DimensionsL:21.8cm, W:9.7cm, D:6.5cm
Weight660g with 4 Lithium 123 Batteries
Power supply4 Lithium 123 Batteries (optional 2 Lithium AA Batteries)
Battery operation time3.5 hours with 4 Lithium 123 Batteries
Wireless capabilityOptional built-in wireless module for remote monitoring and control
AccessoriesXaverNet (remote wireless ToughPad)
