AGM Global Vision ASP thermal vision monocular with FLIR Tau 2 sensor

  • Two lenses 50 and 75 mm
  • Professional Flir Tau 2 sensor
  • Resolution 336×256
  • Frequency 60 Hz
  • For institutions only!

Availability: AvailableInStock

Options:


£4,796.74 tax excl. £5,899.99tax inc.

Add to cart

  • Print

More info

Thermal imaging optics

For authorized institutions only

AGM Global Vision ASP thermal vision monocular with FLIR Tau 2 sensor

The AGM Global Vision ASP thermal imaging camera is an advanced and solid tool designed to perform effective observation in difficult visibility. Advanced performance and ergonomic design ensure effective operation.

  • Generation

    Image refresh

    60 Hz

  • Operating time

    Operating time

    up to 12 h

  • IR illuminator

    WiFi module

    optional

  • Waterproof

    Water resistance

    IP66

Optical products from AGM Global Vision are designed for effective work in the field. They are appreciated by hunters, law enforcement, rescue workers and team game enthusiasts.The ASP thermal vision monocular is a great, compact tool for field recognition during hunting or tactical operations. The applied thermal imaging technology is based on the detection of heat sources emitted by objects with temperature greater than absolute zero, and the representation of temperature differences in the form of a visible image. The advanced, uncooled FLIR Tau 2 microbolometer sensor guarantees high performance.

Key features of the AGM Global Vision ASP thermal vision monocular

  • FLIR Tau 2 sensor

    FLIR Tau 2 sensor

    Modern FLIR Tau uncooled sensor with 336×256 resolution provides smooth image calibration and high performance.

  • Smooth digital zoom

    Smooth digital zoom

    Up to four times digital zoom allows accurate observation from a considerable distance.

  • 12 color palettes

    12 color palettes

    The ASP thermal imager has 12 different color schemes. This allows you to match the optics to your own preferences.

  • Two lenses to choose from

    Two lenses to choose from

    The monocular is available in two versions - with a 50 mm objective for medium range and 75 mm objectivefor long range - both with F/1,0).

  • High fluidity

    High fluidity

    A refresh rate of 60 Khz provides with ultra-smooth images.

  • Optional accessories

    Optional accessories

    You can equip your equipment with optional components - a video recorder to record footage, a Wi-Fi module to transfer files to an external device, and a battery pack to increase battery life from 4 to 12 hours.

  • Remote control

    Remote control

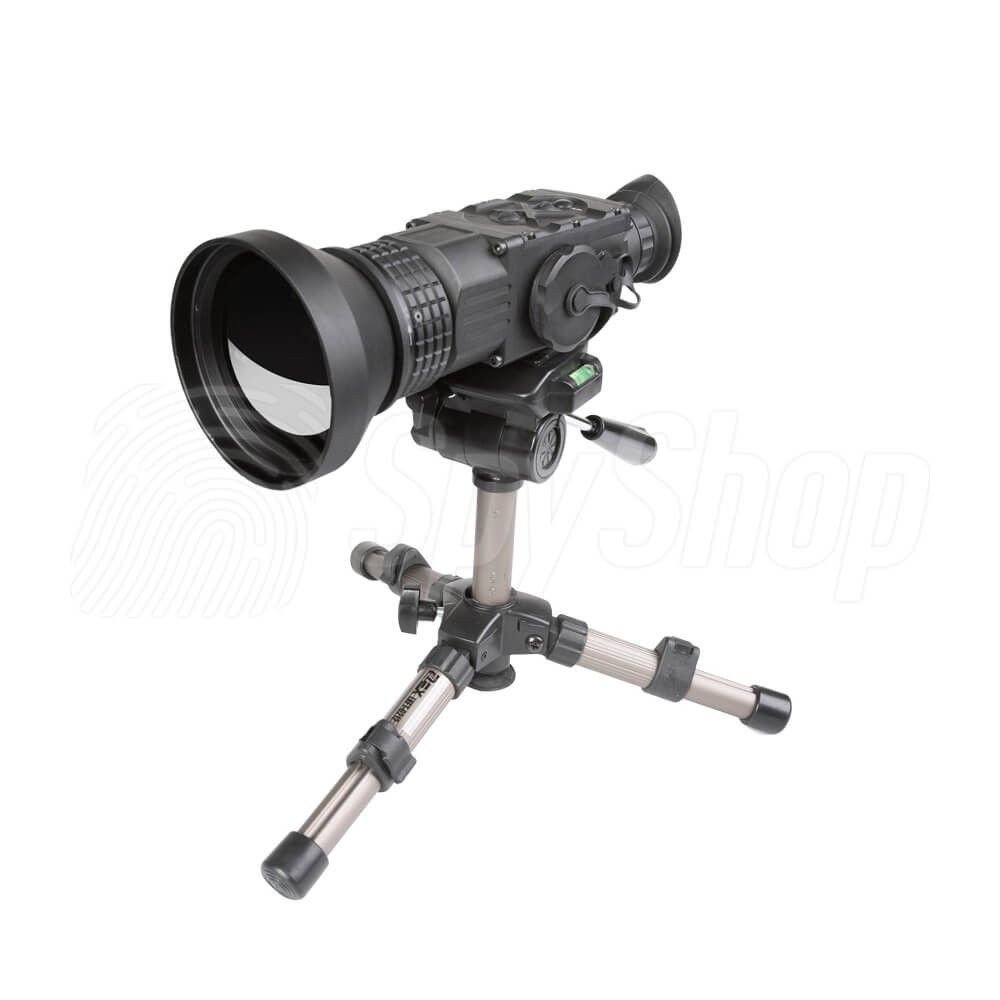

    A great advantage of the thermal vision monocular is the remote control option. It allows you to operate the device from a distance using a wireless remote control. You can also mount the equipment on an optional tripod, which increases the potential of this feature.

Highlights of the AGM Global Vision ASP thermal vision monocular

  • FLIR Tau 2 sensor
  • two lens versions 50 mm and 75 mm
  • solid aluminum alloy housing
  • optional video recording and Wi-Fi module
  • up to 12 hours operation time
  • integrated mounting rail MIL-STD-1913
  • digital zoom 2×, 4×
  • refresh rate 60 Hz
­Specifications of AGM Global Vision ASP thermal vision monocular
Sensor type
  • FLIR Tau 2
  • uncooled
  • microbolometer
Digital zoom1×, 2×, 4×
Resolution336×256
Optical zoom
  • TM50-336: 3.45×
  • TM75-336: 5.2×
Lens
  • 50 mm; F/1.0
  • 75 mm; F/1.0
Refresh rate60 Hz
WiFi moduleyes- optional
Field of view
  • TM50-384: 7.8° × 5.9°×
  • TM75-384: 4.3° × 3.3°×
Depth of field10 m to ∞
Diopter adjustmentfrom -5 to +5
Video recorderoptional
Screen800×600
Video output
  • PAL (768×574)
  • NTSC (640×480)
Protection rateIP67
Color settings12 color palettes
Pixel size17 μm
Operating time
  • up to 4 hours
  • optional up to 12 hours (external battery pack)
Interface
  • Micro-USB (Power bank 5 V)
  • Universal S620 connector (Power In, Analog Video In/Out, External Wi-Fi, External HD Recorder, External Battery Pack)
Power supply
  • 2× CR123A 3 V lithium battery
  • 2× CR123 rechargeable battery 3 V or 3.7 V
Operating temperaturefrom -40°C to +50°C
Warranty3 years
Size
  • TM50-336: 220×72×60 mm
  • TM75-336: 248×89×89 mm
Weight
  • TM50 336: 0,69 kg
  • TM75 336: 0,83 kg
Inbox
  • AGM Global Vision ASP thermal vision monocular
  • Protective bag
  • USB cable
  • User manual

Optional Accessories

  • Battery Pack Kit (PN: 6108EBP1)
  • Carrying Case (PART NO.: 6610HCS1)
  • External HD Video Recorder(PN: 3093453008CO71)
  • External WiFi Module (PN: 3093453008CO71)
  • Titanium tripod with handle (PN: 3093453008CO71)

Manufacturer

AGM Global Vision

AGM Global Vision - leading company in production of a wide variety of optical devices

Specification

­Specifications of AGM Global Vision ASP thermal vision monocular
Sensor type
  • FLIR Tau 2
  • uncooled
  • microbolometer
Digital zoom1×, 2×, 4×
Resolution336×256
Optical zoom
  • TM50-336: 3.45×
  • TM75-336: 5.2×
Lens
  • 50 mm; F/1.0
  • 75 mm; F/1.0
Refresh rate60 Hz
WiFi moduleyes- optional
Field of view
  • TM50-384: 7.8° × 5.9°×
  • TM75-384: 4.3° × 3.3°×
Depth of field10 m to ∞
Diopter adjustmentfrom -5 to +5
Video recorderoptional
Screen800×600
Video output
  • PAL (768×574)
  • NTSC (640×480)
Protection rateIP67
Color settings12 color palettes
Pixel size17 μm
Operating time
  • up to 4 hours
  • optional up to 12 hours (external battery pack)
Interface
  • Micro-USB (Power bank 5 V)
  • Universal S620 connector (Power In, Analog Video In/Out, External Wi-Fi, External HD Recorder, External Battery Pack)
Power supply
  • 2× CR123A 3 V lithium battery
  • 2× CR123 rechargeable battery 3 V or 3.7 V
Operating temperaturefrom -40°C to +50°C
Warranty3 years
Size
  • TM50-336: 220×72×60 mm
  • TM75-336: 248×89×89 mm
Weight
  • TM50 336: 0,69 kg
  • TM75 336: 0,83 kg

Inbox

  • AGM Global Vision ASP thermal vision monocular
  • Protective bag
  • USB cable
  • User manual

Optional Accessories

  • Battery Pack Kit (PN: 6108EBP1)
  • Carrying Case (PART NO.: 6610HCS1)
  • External HD Video Recorder(PN: 3093453008CO71)
  • External WiFi Module (PN: 3093453008CO71)
  • Titanium tripod with handle (PN: 3093453008CO71)
