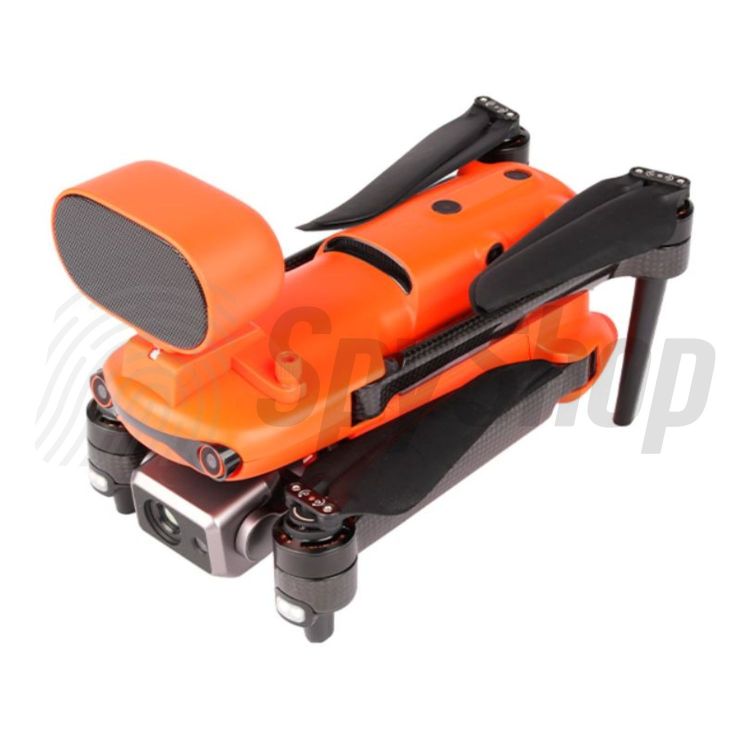

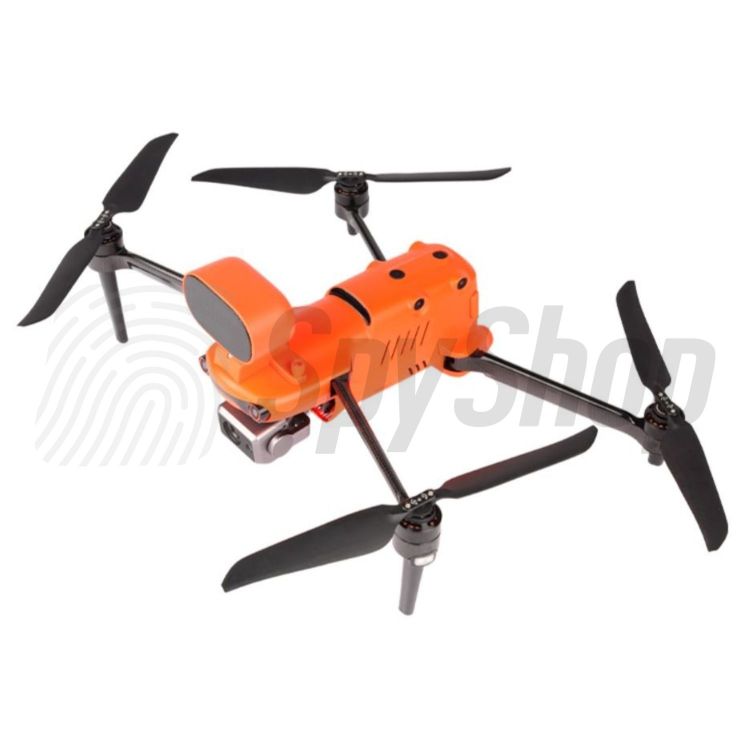

The Autel EVO II Dual 640T thermal drone redefines the speed and efficiency of diagnostics in demanding environments. It is equipped with precise analytical tools and an innovative 360° obstacle avoidance system, so it remains reliable regardless of the mission scenario.
up to 38 minutes
up to 9 km
4×
lossless
Target tracking
Obstacle avoidance
The performance of Autel drones is the result of advanced technological solutions and maximum functionality in a compact form. The EVO II Dual 640T supports the traditional solutions of various industries and facilitates decision-making in emergency situations.
The Autel EVO II Dual 640T is equipped with a sensitive night vision camera with 640x512 resolution and 30 Hz refresh rate, a 48 MP camera and lossless digital zoom. It offers 10 color palettes, as well as Picture-in-Picture mode (a combination of digital and thermal imaging). With 4K HDR technology, it goes beyond the traditional limits of dynamic range. Regardless of environmental conditions, it guarantees clear, deep shots with crisp details.
The drone's versatility is also revealed in its numerous temperature measurement modes. It accurately collects data from the environment and describes each image with metadata. IRPC's free tool for analyzing measurements allows for their quick import and editing, as well as generating reports.
The EVO II Dual 640T has the ability to identify 64 objects at once. The 19 groups of sensors enable it to model 3D maps and dynamic 2.0 paths in challenging terrain, while tracking the target and avoiding obstacles. Moreover, it measures its speed and predicts its trajectory.
The drone's efficiency is also due to its power - it guarantees as much as 38 minutes of flight and seamlessly transmits video over 8 km (including live video). The magnesium alloy housing is characterized by high mechanical strength. Its modular design and payload capacity of up to 900g make it easy to expand the drone with additional accessories.
| Specifications of Autel Evo II drone with 640T thermal camera | |
|---|---|
| Infrared camera sensor | Uncooled VOx microbolometer |
| Sensor resolution | EVO II Dual (640) 640×512 EVO II Dual (320) 320×256 |
| Pixel pitch | 12 µm |
| Wavelength range | 7,5-13,5 µm |
| FOV | EVO II Double (640) 32° EVO II Double (320) 34° |
| Thermal/NEdT sensitivity | <50 mK |
| Magnification | 1 - 8x |
| Photography modes | Single shot, series and timelapse |
| Still photography resolution | IR: 640×512 PIP: 1920×1080, 1280×720 |
| Video format | MOV/MP4 (H.264/H.265 supported) |
| Video resolution | 640×512 30Hz (USA) 640×512 9Hz (other regions) |
| Takeoff weight | 1150 g |
| Maximum takeoff weight | 2000 g |
| Diagonal wheelbase | 397 mm |
| Aircraft battery | 7100 mAh |
| Maximum flight time (standard) | EVO II Dual (640) 38 min EVO II Dual (320) 40 min |
| Maximum hover time (standard) | EVO II Dual (640) 33 min EVO II Dual (320) 35 min |
| Maximum level flight speed (standard) | 45 mph (20 m / s) |
| Maximum ascent speed | 18 mph (8 m / s) |
| Maximum descent speed | 9 mph (4 m / s) |
| Maximum takeoff altitude | 7000 m |
| Maximum wind resistance | Wind strength on a scale of 8 |
| Operating environment temperature | 32-104°F (0-40°C) |
| Operating frequency (2.4 G) | 2,4 ~ 2,4835 GHz |
| Transmission power (2,4 G) | 2,4 ~ 2,4835 GHz FCC: ≤26 dBm ISED: ≤26 dBm CE: ≤20 dBm RCM: ≤20 dBm SRRC: ≤20 dBm |
| Maximum signal transmission distance | FCC - 9 km CE - 5 km |
| Inbox |
|---|
| Specifications of Autel Evo II drone with 640T thermal camera | |
|---|---|
| Infrared camera sensor | Uncooled VOx microbolometer |
| Sensor resolution | EVO II Dual (640) 640×512 EVO II Dual (320) 320×256 |
| Pixel pitch | 12 µm |
| Wavelength range | 7,5-13,5 µm |
| FOV | EVO II Double (640) 32° EVO II Double (320) 34° |
| Thermal/NEdT sensitivity | <50 mK |
| Magnification | 1 - 8x |
| Photography modes | Single shot, series and timelapse |
| Still photography resolution | IR: 640×512 PIP: 1920×1080, 1280×720 |
| Video format | MOV/MP4 (H.264/H.265 supported) |
| Video resolution | 640×512 30Hz (USA) 640×512 9Hz (other regions) |
| Takeoff weight | 1150 g |
| Maximum takeoff weight | 2000 g |
| Diagonal wheelbase | 397 mm |
| Aircraft battery | 7100 mAh |
| Maximum flight time (standard) | EVO II Dual (640) 38 min EVO II Dual (320) 40 min |
| Maximum hover time (standard) | EVO II Dual (640) 33 min EVO II Dual (320) 35 min |
| Maximum level flight speed (standard) | 45 mph (20 m / s) |
| Maximum ascent speed | 18 mph (8 m / s) |
| Maximum descent speed | 9 mph (4 m / s) |
| Maximum takeoff altitude | 7000 m |
| Maximum wind resistance | Wind strength on a scale of 8 |
| Operating environment temperature | 32-104°F (0-40°C) |
| Operating frequency (2.4 G) | 2,4 ~ 2,4835 GHz |
| Transmission power (2,4 G) | 2,4 ~ 2,4835 GHz FCC: ≤26 dBm ISED: ≤26 dBm CE: ≤20 dBm RCM: ≤20 dBm SRRC: ≤20 dBm |
| Maximum signal transmission distance | FCC - 9 km CE - 5 km |
