Bug detector scanner ST-111 – detection of broadband transmissions like GSM networks, wiretaps, Wifi, Bluetooth

  • Detection incl. WiFi, Bluetooth,
  • Separate signal display
  • Frequency meter
  • 24/7 monitoring
  • Event Log

AvailableInStock

59053163

  • Print

More info

Bug detector scanner ST-111 – detection of broadband transmissions like GSM networks, wiretaps, Wifi, Bluetooth

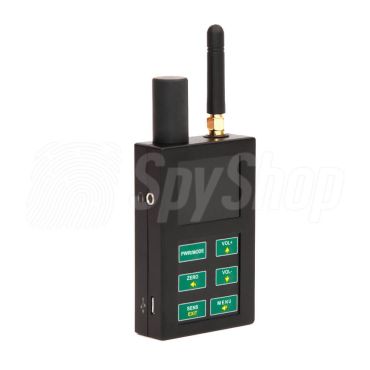

Bug detector scanner ST-111 is an elite tool for professionals enabling the detection and location of devices used to illegally obtain secret information via cell phones, WiFi networks or microcameras, as well as Bluetooth. The detector has extensive functionality with simple operation, great parameters and small size.

  • Channels

    SUPPORTED CHANNELS

    CDMA, GSM, 3G, 4G

    Bluetooth

    WiFi 2,4 and 5 GHz

  • Work time

    Operation time

    4 h

  • Range of detection

    Detection range

    up to 50 m

  • Range of frequency

    Frequency range

    50 MHz - 7 GHz

The ST-111 broadband Bug detector scanner ST-111 allows scanning of radio bands in the range from 50 MHz to 7 GHz as well as analysis and identification of such transmissions as:

  • analog signals with the possibility of their AM and FM demodulation (headphones are not included in the set),
  • cellular connectivity in CDMA 450, GSM, 3G, 4G standards,
  • telephones operating in the DECT standard,
  • 2.4 and 5 GHz WiFi networks,
  • Bluetooth connectivity.

Advanced signal analysis algorithms allow you to specify the type and power measurement allows you to easily locate the source of transmission. Additional features of the Bug detector scanner ST-111 include:

  • detection of signal jammers,
  • special text messages detection mode,,
  • signal measurement of GSM, 3G and 4G base stations.

Operating modes of the Bug detector scanner ST-111 for broadband detection

  • search mode which is intended for RD search and detection. The use of the mode is based on a visual assessment of the signal level on a 32-segment scale. In addition, in can be used separately indication of continuous and pulse signals, GSM, DECT, BLUETOOTH identification signals, WLAN standards and a stable signal frequency. The possibility of acoustic control by means of headphones is also provided;
  • monitoring mode is responsible for independent operation in certain conditions. Information about the detected signal is saved in the device's memory;
  • event log allows viewing the entity log in MONITOR mode. Event classification takes place according to the duration or level of the signal;
  • oscilloscope mode oscillogram of the detected signal.

The most important features of the broadband wiretap, GSM network and digital Bug detector scanner ST-111

  • separate indication of analog and pulsing signal,
  • selective detection and recognition of signals in the band up to 7 GHz,
  • advanced algorithms for determining the type of measured signal (CDMA 450, GSM, 3G, 4G, DECT, Bluetooth, WLAN including 2.4 and 5 GHz),
  • displaying and identification of GSM (2G), DECT, WLAN (2.4 GHz) signals
  • 24/7 monitoring
  • log history
  • work schedule
­Specification of the Bug detector scanner ST-111 for detection of broadband transmissions like GSM networks, wiretaps, Wifi, Bluetooth
Frequency bandwidth
  • 50 - 2500 MHz
  • 2500 - 7000 MHz
Sensitivity threshold
  • 75 (50 МHz)
  • 70 (1500 МHz)
  • 50 (2500 МHz)
Sensitivity threshold W/cm22*10-10
Display dynamic range
  • range No. 1 - 55 dB
  • range No. 2 - 30 dB
Meter frequency range50 - 2500 MHz
Sensitivity of the Bug detector scanner ST-111
  • 35 dBm (50 МHz)
  • 50 dBm (500 МHz)
  • 20 dBm (2500 МHz)
Measurement accuracy0,005%
Power supplyLi-pol battery 3,6V
Electricity consumption110 mA
Dimensions90 × 54 × 21 mm
Weight250 g
Inbox
  • Bug detector scanner ST-111
  • RF Antenna
  • USB cable
  • Power supply and charger
  • Software

Specification

­Specification of the Bug detector scanner ST-111 for detection of broadband transmissions like GSM networks, wiretaps, Wifi, Bluetooth
Frequency bandwidth
  • 50 - 2500 MHz
  • 2500 - 7000 MHz
Sensitivity threshold
  • 75 (50 МHz)
  • 70 (1500 МHz)
  • 50 (2500 МHz)
Sensitivity threshold W/cm22*10-10
Display dynamic range
  • range No. 1 - 55 dB
  • range No. 2 - 30 dB
Meter frequency range50 - 2500 MHz
Sensitivity of the Bug detector scanner ST-111
  • 35 dBm (50 МHz)
  • 50 dBm (500 МHz)
  • 20 dBm (2500 МHz)
Measurement accuracy0,005%
Power supplyLi-pol battery 3,6V
Electricity consumption110 mA
Dimensions90 × 54 × 21 mm
Weight250 g

Inbox

  • Bug detector scanner ST-111
  • RF Antenna
  • USB cable
  • Power supply and charger
  • Software
