Car GPS tracker - GPS GL300W with GLONASS system and GSM module

  • GPS and GLONASS Navigation System
  • Operation time up to 120 days
  • 30 days’ routes archive
  • Remote control
  • Car GPS tracker supports any SIM cards

Availability: Available

59051921


£279.00tax inc.

Add to cart

  • Print

More info

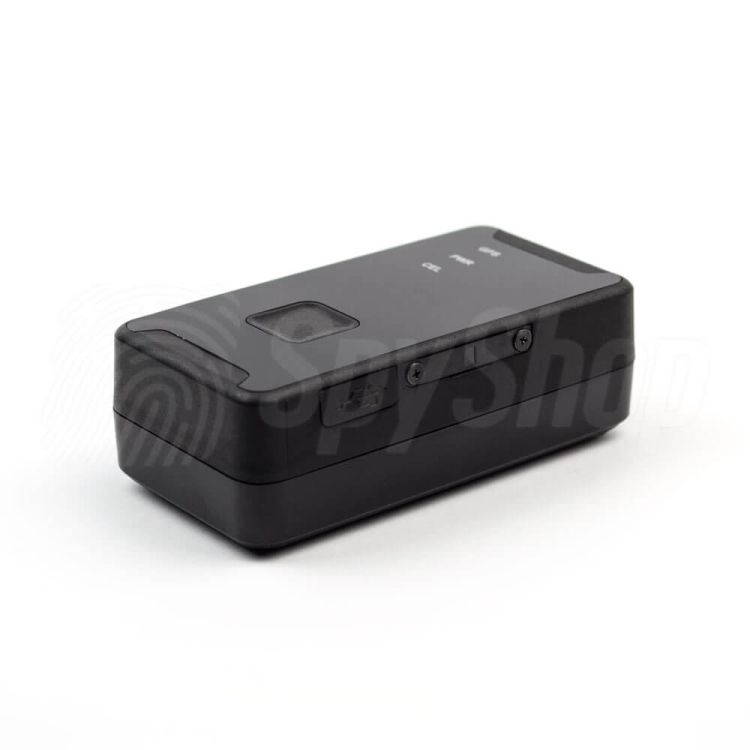

GPS GL300W - car GPS tracker with GPS module and GLONASS system

Car GPS tracker GL300W is an innovative and compact locating device highly resistant to external factors. Key features of the car GPS tracker include its ability of precise locating and long-time monitoring of position, as well as remote access to the routes via the online server.

GL300W precision of tracking is an effect of the applied GPS and GLONASS technology. Communication takes place via the four-band GSM module: 850/900/1800/1900 and UMTS: 850/1900/2100 MHz. A great advantage of the car GPS tracker is the ability to check location at any time via GSM or through the server. Owing to its compact size, the GPS locator can be hidden in a car, a package or a construction machine. Moreover, long operation time and resistance to external factors guarantee satisfactory performance in all conditions.

Applications of GL300W locator

  • tracking of corporate or private vehicles, boats, and etc.
  • locating construction machines, excavators, tractors and cranes
  • tracking valuable shipments.
  • Accurate locating module

    Accurate locating module

    Accuracy of location of people or vehicles up to 2 meters, thanks to the sensitive module U-blox M8 and the applied SBAS system. 72-channel chipset of the GPS transmitter is compatible with GPS and GLONASS system.

  • Glonass and GPS

    GPS and GLONASS System

    A great advantage is the fact that the locator applies two complementary locating systems. When GPS (Global Positioning System) is not able to get connection, the GLONASS (from Russian: Global Navigation Satellite System) system is activated.

  • GEOFENCING – safe zone

    GEOFENCING – safe zone

    The Geofencig function allows to narrow the area defined as ‘safe’. If this zone is exceeded, the user is immediately notified on that with the message including current location of the device. This allows for faster response in case of property theft.

  • INTEGRATED ANTENNAS

    INTEGRATED ANTENNAS

    Built-in GPS/GLONASS and GSM/UMTS antennas ensure effective operation without the need for external antennas use.

  • WATERPROOF CASING

    WATERPROOF CASING

    In-car GPS locator complies with IPX5 resistance standard which guarantees protection against water splashes irrespective of the direction of its coming.

  • Long operation time

    Long operation time

    Car GPS tracker GL300W has a 2600 mAh built-in lithium-polymer rechargeable battery which allows for up to 120 days of operation in the sleep mode, and up to 20 days with the GPS positioning set for every 10 minutes. When a longer-time operation is required, we recommend a power supply set GL200EBK which increases the operation time several times.

  • ALL INFORMATION IN ONE PLACE!

    ALL INFORMATION IN ONE PLACE!

    You can access all activities of the locator in the user panel via the website.

  • CONVENIENT ACCESS TO INFORMATION

    CONVENIENT ACCESS TO INFORMATION

    All activities are stored on the server which can be accessed in two ways:

    • online - via mobile devices (laptop, smartphone, tablet)
    • using any computer with internet access or any desktop computer,
    • using the mobile phone - just make a phone call to the number of the card inserted in the GPS locator, in return you will get an SMS message with a link to the map with marked GPS position.
  • SIM CARDS

    SIM CARDS

    Data transmission takes place via the GSM mobile network (GSM 850/900/1800/1900). Please make sure the SIM card is not secured by PIN code. Fees are charged according to the operator's prices.

  • Annual access package

    Annual access package

    Together with the in-car GPS locator, the user receives an annual access to the server, and the only costs left will be the GPS data transmission costs.

  • Easy to use

    Easy to use

    Operating the car GPS tracker does not cause troubles because the servicing interface is readable and easy to use. A great advantage is the possibility to export the saved routes for further archiving or printing.

­

GPS monitoring platform - services price list
Price list of services and access to the professional GPS Tracking platform

The use of the car GPS tracker and the user panel have been designed to allow for intuitive and comfortable operation.

Demonstration account of GPS platform

By clicking the link below you can see how the online access to GPS locator data website works. Login details:

login: demospy
password: demospy

Login panel to the locator server GPS/GLONASS GL300 Server

  • IMPORTANT!
  • The specification applies typical values for the operating time and location accuracy. They can vary depending on the strength of the GPS signal, which is beyond our control.
  • The first year of using the platform is free of charge. Every further 12 months entail annual fee of 59 GBP (gross).

Manufacturer

Queclink

Queclink is a leading supplier of wireless devices and solutions . An experienced team of constructors and specialists is a core of its development and designing department. We offer finished products for vehicle localizing , fleet managing, localizing and tracking of parcels ,...

Specification

Specification of the car GPS tracker GL300W
1 full visibility of the sky
GPS chipset
  • u-blox M8
  • 72 channels
GPS antenna
  • integrated GPS / GLONASS
  • integrated GSM
Sensitiveness of the car GPS tracker
  • typical: - 147 dBm
  • Hot Start: - 155 dBm
  • location: - 162 dBm
Accuracy
  • typical: < 5 m
  • assisted by SBAS: < 2 m
Startup time 1
  • Cold Start : 60 sec (average)
  • Warm Start: 30 sec
  • Hot Start: 1 sec
Quad band GSM850/ 900/ 1800/ 1900 MHz
Compatibility of the car GPS tracker
  • Class 4 (33±2 dBm) for GSM 850 and EGSM 900
  • Class 1 (30±2 dBm) for DCS 1800 and PCS 1900
  • Class 3 (24+1/-3 dBm) for UMTS 850/1900/2100
Device classGPRS Class B
Class of multichannel transmissionGPRS multislot class 12
Error of RMS phase shift< 5°
Maximum RF power33 dBM +/-2 dBm
Input dynamic range-15 to -107 dBm
Sensitivity of receiverclass II RBER (-107 dBm)
Stability of frequency< 2,5 ppm
Maximum error of frequency±0,1 ppm
Power supply of the car GPS trackerLi-Poly battery 2600 mAh, 3.7 V
Current consumption in standby mode< 10 μA
Operation time of the car GPS tracker
  • sleep mode: up to 120 days
  • reporting every 60 minutes: up to 24 days
  • reporting every 30 minutes: up to 22 days
  • reporting every 10 minutes: up to 20 days
  • reporting every 5 minutes: up to 16 days
  • reporting every 3 minutes: up to 12 days
  • reporting every 1 minute: up to 10 days
LED indicators
  • status power
  • GPS/GLONASS
  • GSM
WaterproofnessIPX5 standard
Dimensions of the car GPS tracker78 × 40 × 28 mm
Weight93 g

Inbox

  • Car GPS tracker - GPS GL300W with GLONASS system and GSM module
  • Charger
  • SIM card
  • Annual access to the panel on the website
  • User manual
