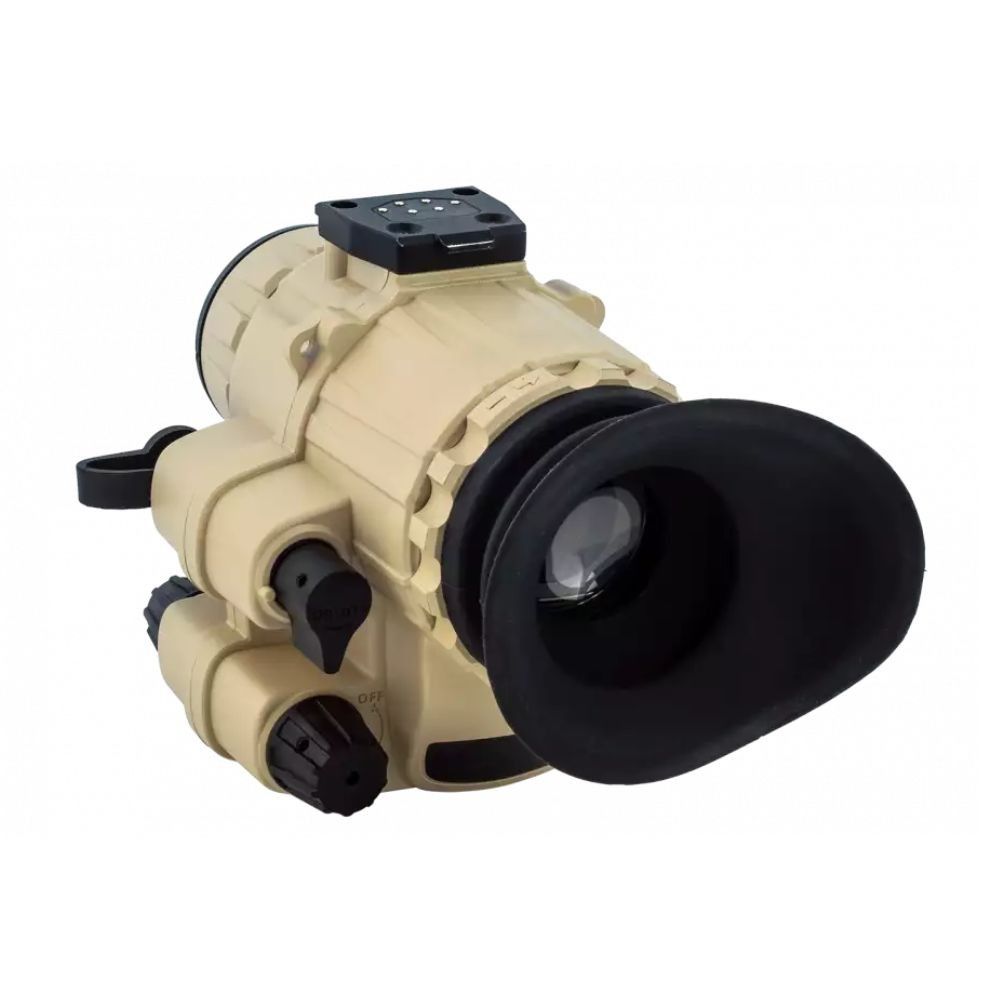

Fusion AGM F14 tactical monocular - a combination of night vision and thermal imaging
Fusion AGM F14 tactical monocular - a combination of night vision and thermal imaging

  • Customer rating:
    Average: 0
    Nobody has posted a review yet
    Rate / write a comment
  • +44 (020) 3290 1199
    Sales representative and Consultant
    Zapytaj
    Casper Antechi

    Sales representative and Consultant

    +44 (020) 3290 1199

Fusion AGM F14 tactical monocular - a combination of night vision and thermal imaging

  • Waterproof
  • Azimuth and inclination indication
  • Very large diameter of the exit pupil (15mm)
  • Image brightness and contrast adjustment
  • Low power consumption - up to 8 h of operation in fusion mode and more than 60 h of operation in night vision mode

Options:


£9,788.61 tax excl. £12,039.99tax inc.

Add to cart

  • Print

More info

AGM F14 Fusion Night Vision Monocular

The AGM F14 tactical monocular adapts to the prevailing conditions. It enables effective observation in the dark and in extreme conditions such as snow, smoke or fog. Thanks to a powerful image intensifier and a high-sensitivity thermal detector, it exposes every detail.

Thermal and digital detection

The sensitive thermal detector guarantees clear, sharp images in all weather and lighting conditions. The Gen 2+ or Gen 3 image intensifier, on the other hand, captures all the details and ensures high quality vision. You can adjust its brightness and contrast according to your personal preferences.

Comfortable operation

Once installed on a helmet or head, the AFM F15 monocular can be used hands-free. Powerful rechargeable batteries allow it to operate for 6 hours in fusion mode and more than 60 hours of night vision observation.

Waterproof standard

The lightweight yet rugged design is fully dustproof. It protects the device from immersion in water (to a maximum depth of 1 meter for up to 30 minutes).

Product video

Specifications AGM F14 AP / APW
Sensor type12 μm VOx uncooled focal plane array
Sensor resolution640×512
Spectral spectrumfrom 8 μm to 14 μm
Field of view (H × X)25.8° × 19.1°
Digital zoom1×, 2×, 4×, 8×
Detection range1500 m
FFC (Flat Field Correction)Manual
PalettesWhite Hot/Black Hot/Orange Hot, Outline, Highlighting, Thermal Image, Breath
Night vision sensor I2Image intensifier Gen 2+ or Gen 3
Manual gain control of I2 night vision moduleYes
Focal length of I2 night vision module lens25 mm
Optical zoom
Diopter adjustment range-3.5 to +2.5 dpt
Output pupil offset25 mm
Output pupil diameter15 mm
Bright light cut-offYes
Infrared illuminatorYes
Power supply2× 16650
Operating timeOver 8 hours continuous operation (image fusion mode) Over 60 hours continuous operation (I2 night vision only)
WaterproofIP67
Dimensions100 × 71 × 86 mm
Weight (without batteries)380 g
Inbox
  • AGM F14 AP / APW monocular
  • Battery holder
  • Two 18650 lithium batteries
  • Helmet support kit
  • Video cable
  • Hard case
  • User manual

Manufacturer

AGM Global Vision

AGM Global Vision - leading company in production of a wide variety of optical devices

Specification

Specifications AGM F14 AP / APW
Sensor type12 μm VOx uncooled focal plane array
Sensor resolution640×512
Spectral spectrumfrom 8 μm to 14 μm
Field of view (H × X)25.8° × 19.1°
Digital zoom1×, 2×, 4×, 8×
Detection range1500 m
FFC (Flat Field Correction)Manual
PalettesWhite Hot/Black Hot/Orange Hot, Outline, Highlighting, Thermal Image, Breath
Night vision sensor I2Image intensifier Gen 2+ or Gen 3
Manual gain control of I2 night vision moduleYes
Focal length of I2 night vision module lens25 mm
Optical zoom
Diopter adjustment range-3.5 to +2.5 dpt
Output pupil offset25 mm
Output pupil diameter15 mm
Bright light cut-offYes
Infrared illuminatorYes
Power supply2× 16650
Operating timeOver 8 hours continuous operation (image fusion mode) Over 60 hours continuous operation (I2 night vision only)
WaterproofIP67
Dimensions100 × 71 × 86 mm
Weight (without batteries)380 g

Inbox

  • AGM F14 AP / APW monocular
  • Battery holder
  • Two 18650 lithium batteries
  • Helmet support kit
  • Video cable
  • Hard case
  • User manual
