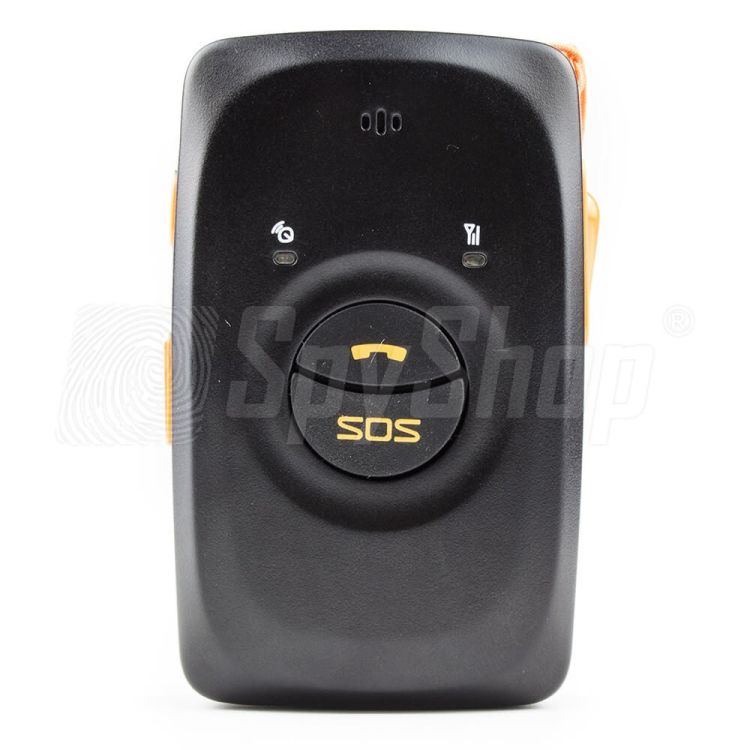

Meitrack's MT90 GPS tracking system is a hi-tech, reliable instrument designed for tracking vehicles (humans, cars, trucks, motorcycles, construction machines, boats), valuable parcels, as well as people or animals.
A noteworthy asset of the MT90 Server, especially concerning protection of children or elderly people, is its telephone function – the GPS tracker comes with a built-in microphone and a speaker, allowing the user to call for help with a single press of SOS button. The device calls 3 previously defined telephone numbers until answered.
Additionally, it allows to eavesdrop on the sounds in the tracker's vicinity – simply call it from a privileged number. It greatly augments the capability to maintain safety and to monitor whatever is occurring near the person carrying the tracker, or in a tracked car equipped with MT90 Server device.
Mobile phones constitute an additional means of communication – if necessary, it allows to obtain the device's exact location, along with a link to a map with the position marked, or to issue control commands manually.
This Internet-accessible tracking system is resistant to adverse weather conditions, which allows it to operate in virtually any environment. A perfect solution for ensuring the safety of those in need of supervision, allowing to locate a stolen car, determine the location of a company vehicle, or to track a valuable parcel.
The MT90 Server GPS tracking system utilises a very precise SiRFStar IV GPS module, together with four-band GSM transmission system (850/900/1800/1900MHz), which allow for precise and accurate tracking, swift position determination and efficient communication with the device.
Precise tracking of vehicles with 5 meter accuracy - depending on GPS signal strength in a specific area.
Integrated antenna system ensures efficient operation without the necessity to use external antennas.
The GPS tracking system's compact construction, small dimensions and low weight allow for unrestricted use of the device in any conditions. The MT90 Server model comes with a waterproof housing (IP65 norm), while its advanced technological solutions make it stand out among other devices.
The device is powered by a 1100 mAh Li-Ion battery, which allows for continuous operation for up to 24 hours. It is also possible to connect the MT90 Server GPS tracker to an external power source, thus greatly extending the work time.
GPS tracking system MT90 utilises GPS satellite navigation system to determine its location, while the data is sent through mobile phone network. It supports regular SIM cards from any mobile service provider (data transfer, SMS messages and phone calls charged according to the provider's price list).
All data about the tracked vehicle's – or person's – location is uploaded to a server using packet data connection. Along with the device, the user is provided with one year of access to the system. The only additional cost is to provide necessary funds on the SIM card installed in the tracker for human location.
After logging into the account from a computer or a mobile device, the user is able to view recorded routes, remotely configure the device. The price includes 5 SMS commandsper day (control command package available for a fee). The administrator panel allows to quickly access:
The GeoFence service – the possibility to define areas, trespassing which is notified on a map with a red dot in the place of crossing the borders of the area. Provides the information about the date and time of the event (text message notifications about trespassing defined areas available for a fee).
Global range of operation – the GPS tracking system has near-worldwide coverage. The device utilises a mulitrange GSM module (allowing to operate on any continent). Pinpoint accuracy, small size, telephone function and eavesdropping on ambient sounds constitute the main assets of MT90 Server GPS tracker for human location.
The device is simple and intuitive in handling. Data is presented in the form of routes marked on a map.
By clicking the link below you can get familiar with the Internet website with the online access to the data from GPS locator.
Logging server panel GPS GV500 Server
| Specification of MT90 - GPS tracking system for human location | ||||
|---|---|---|---|---|
| 1 full view of the sky | ||||
| GPS chipset | SIRF-Star IV | |||
| GPS antenna | integrated | |||
| GSM antenna | integrated | |||
| Sensitivity of the GPS tracking system | typical: - 163 dBm | |||
| Accuracy | optimal: < 8m | |||
| Start-up time 1 |
| |||
| Quad band | 850/ 900/ 1800/ 1900 MHz | |||
| Power supply of the GPS system for human location | Li-Poly 1100mAh 3.7V rechargeable battery | |||
| Charging voltage | DC 4.2 V–5.5 V/400 mA (miniUSB interface) | |||
| External battery voltage | 3.5–5 V | |||
| Power consumption in stand-by mode of the GPS tracking system | < 65mA | |||
| Operation time |
| |||
| LED indicators |
| |||
| Button | 5 buttons | |||
| Microphone | built-in | |||
| Loudspeaker | built-in | |||
| Accelerometer | built-in | |||
| Memory |
| |||
| Waterproofness | IP65 norm | |||
| Operating Temperature of the waterproof GPS tracking system | -20°C to +50°C | |||
| Humidity | 5% ~ 95% | |||
| Dimensions | 77 × 47 × 20 mm | |||
| Weight of the GPS for human location | 65g | |||
| Inbox |
|---|
| Specification of MT90 - GPS tracking system for human location | ||||
|---|---|---|---|---|
| 1 full view of the sky | ||||
| GPS chipset | SIRF-Star IV | |||
| GPS antenna | integrated | |||
| GSM antenna | integrated | |||
| Sensitivity of the GPS tracking system | typical: - 163 dBm | |||
| Accuracy | optimal: < 8m | |||
| Start-up time 1 |
| |||
| Quad band | 850/ 900/ 1800/ 1900 MHz | |||
| Power supply of the GPS system for human location | Li-Poly 1100mAh 3.7V rechargeable battery | |||
| Charging voltage | DC 4.2 V–5.5 V/400 mA (miniUSB interface) | |||
| External battery voltage | 3.5–5 V | |||
| Power consumption in stand-by mode of the GPS tracking system | < 65mA | |||
| Operation time |
| |||
| LED indicators |
| |||
| Button | 5 buttons | |||
| Microphone | built-in | |||
| Loudspeaker | built-in | |||
| Accelerometer | built-in | |||
| Memory |
| |||
| Waterproofness | IP65 norm | |||
| Operating Temperature of the waterproof GPS tracking system | -20°C to +50°C | |||
| Humidity | 5% ~ 95% | |||
| Dimensions | 77 × 47 × 20 mm | |||
| Weight of the GPS for human location | 65g | |||
