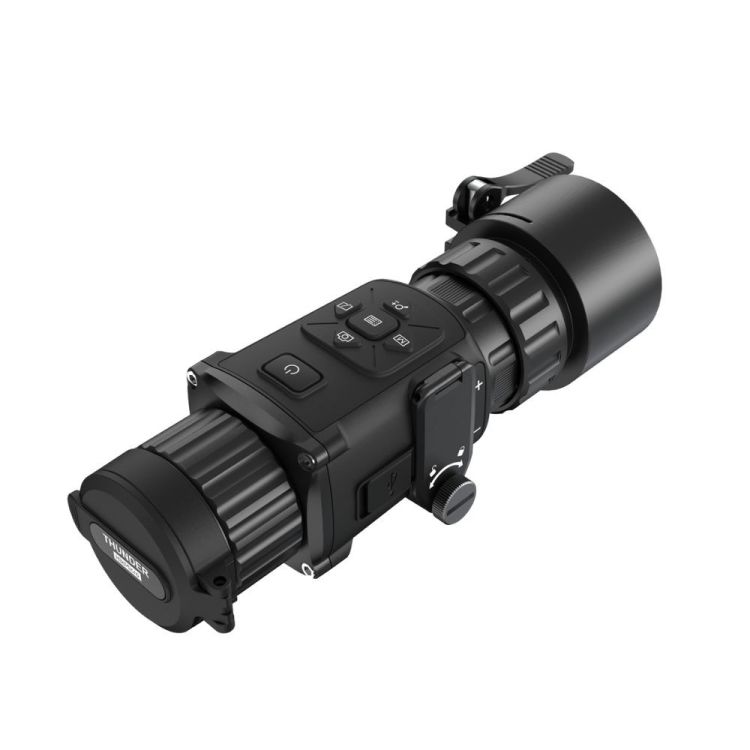

Hikmicro Thunder series thermal imaging caps are distinguished by their wide application, advanced optics and high detection precision. They prove themselves on hunting, during patrols and conducting observations.
Enhanced details, reduced noise, high contrast - Hikmicro once again uses innovative thermal imaging technologies to offer its customers the highest quality and pioneering solutions. Regardless of the prevailing weather conditions or light intensity, images are clear and details are visible. What's more, the Picture-in-Picture function allows selected elements to be magnified in a separate window while maintaining a wide field of view.
Hikmicro Thunder adapts to the needs and preferences of shooters. It offers 5 versions of target reticles in 3 colors and the option to turn them off for sighting alone. Indeed, the reticles can function as a thermal sight and a monocular.
The housing is made of lightweight yet highly durable aluminum. It shows resistance to shock, impact and adverse weather conditions. The IP67 rating indicates protection against water and dust.
Thunder caps capture images. Photos and videos are stored in the built-in 16 GB memory, from where they can be transferred via WiFi to other devices. Their operating time is about 4.5 hours. It can be extended by connecting a powerbank.
Detailed differences between the TE19C, TH35PC, TQ35C, TQ50C, TH35C models are listed in the "specifications" tab.
SPECIFICATIONS OF HIKMICRO THUNDER / THUNDER PRO THERMAL IMAGING CAPS | |||||||||
---|---|---|---|---|---|---|---|---|---|
TE19C | TH35PC | TQ35C | TQ50C | TH35C | |||||
Sensor | 256×192, 12 µm | 384×288, 12 µm | 640×512,12 µm | 640×512, 12 µm | 384×288, 17 μm | ||||
Refresh rate | 25 Hz | 25 Hz | 25 Hz | 50 Hz | 50 Hz | ||||
Field of view | 9.24° × 6.94° | 7.6° × 5.7° | 12.5° × 10.1° | 8.78° × 7.03° | 10.0° × 8.0° | ||||
Lens | 19 mm F:1,0 | 35 mm F:1,0 | 35 mm F:1,0 | 50 mm F:1,0 | 35 mm F:1,0 | ||||
NETD | Less than 35mK | ||||||||
Magnification | 1× | 1× - 8× | |||||||
Detection range | 900 m | 1800 m | 1800 m | 2600 m | 1235 m | ||||
Display | 0,39 cala, OLED, 1024 × 768 | 0,39 cala, OLED, 748 × 561 | |||||||
Power supply | 2× CR123A or RCR123 | Replaceable CR123A or RCR123A | 2× CR123A or RCR123 | Replaceable CR123A or RCR123A | Replaceable CR123A or RCR123A | ||||
Operating time | Up to 4.5 hours | Up to 4 hours | Up to 3.25 hours | Up to 3.75 hours | Up to 4.5 hours | ||||
Shock resistance | 750g /1 ms | ||||||||
IP class | IP67 | ||||||||
Operating temperature | from -20°С to +55°С | ||||||||
Length | 153,2 × 62,5 × 59,2 mm | 153,2 × 62,5 × 59,2 mm | 153,2 × 62,5 × 59,2 mm | 171,4 × 74,5 × 62,2 mm | 153,2 × 62,5 × 59,2 mm | ||||
Weight | 419 g | 375 g | 375 g | 495 g | 420 g |
Inbox |
---|
SPECIFICATIONS OF HIKMICRO THUNDER / THUNDER PRO THERMAL IMAGING CAPS | |||||||||
---|---|---|---|---|---|---|---|---|---|
TE19C | TH35PC | TQ35C | TQ50C | TH35C | |||||
Sensor | 256×192, 12 µm | 384×288, 12 µm | 640×512,12 µm | 640×512, 12 µm | 384×288, 17 μm | ||||
Refresh rate | 25 Hz | 25 Hz | 25 Hz | 50 Hz | 50 Hz | ||||
Field of view | 9.24° × 6.94° | 7.6° × 5.7° | 12.5° × 10.1° | 8.78° × 7.03° | 10.0° × 8.0° | ||||
Lens | 19 mm F:1,0 | 35 mm F:1,0 | 35 mm F:1,0 | 50 mm F:1,0 | 35 mm F:1,0 | ||||
NETD | Less than 35mK | ||||||||
Magnification | 1× | 1× - 8× | |||||||
Detection range | 900 m | 1800 m | 1800 m | 2600 m | 1235 m | ||||
Display | 0,39 cala, OLED, 1024 × 768 | 0,39 cala, OLED, 748 × 561 | |||||||
Power supply | 2× CR123A or RCR123 | Replaceable CR123A or RCR123A | 2× CR123A or RCR123 | Replaceable CR123A or RCR123A | Replaceable CR123A or RCR123A | ||||
Operating time | Up to 4.5 hours | Up to 4 hours | Up to 3.25 hours | Up to 3.75 hours | Up to 4.5 hours | ||||
Shock resistance | 750g /1 ms | ||||||||
IP class | IP67 | ||||||||
Operating temperature | from -20°С to +55°С | ||||||||
Length | 153,2 × 62,5 × 59,2 mm | 153,2 × 62,5 × 59,2 mm | 153,2 × 62,5 × 59,2 mm | 171,4 × 74,5 × 62,2 mm | 153,2 × 62,5 × 59,2 mm | ||||
Weight | 419 g | 375 g | 375 g | 495 g | 420 g |
