Locator TK-104 GPS for tractors, construction machines and cars

  • Remote power cut-off
  • Setting a permitted zone
  • Remote control of the GPS locator via GSM
  • Real-time monitoring
  • Power supply alarms

Ask for availability

Availability: Waiting for deliveryOutOfStock

59051930

Add email


£88.62 tax excl. £109.00tax inc.

Add to cart
  • Print

More info

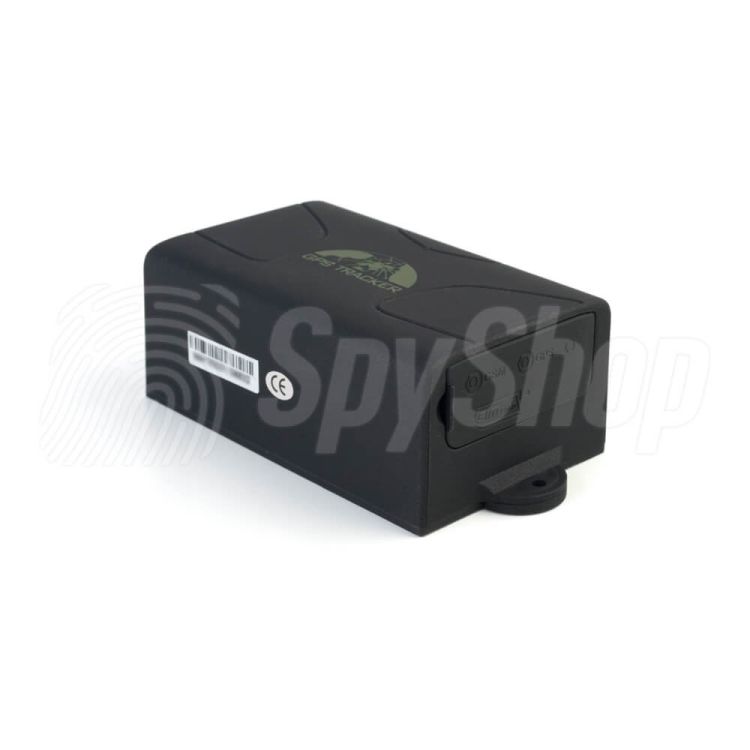

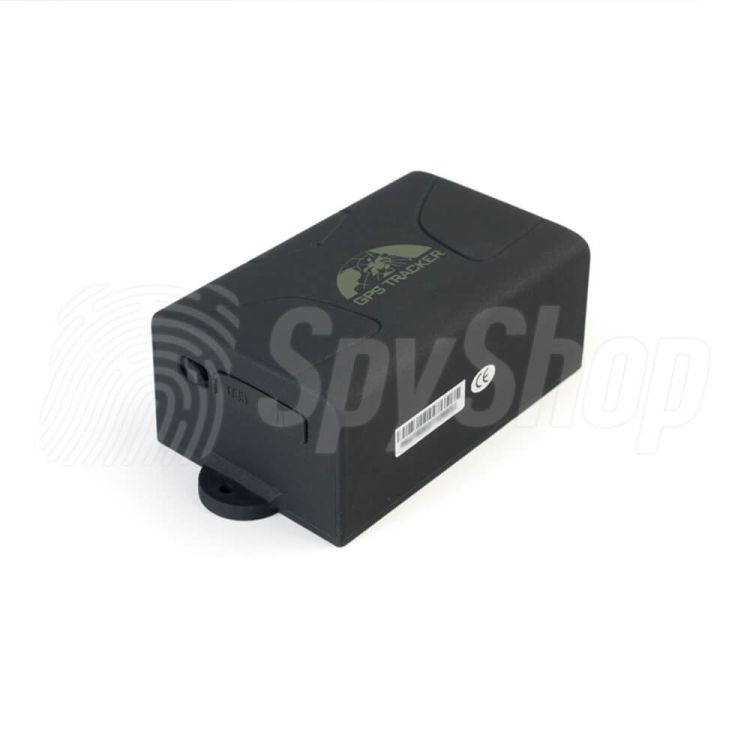

TK-104 GPS locator for tractors, construction machines, and other vehicles

TK-104 is a reliable GPS locator which can cut-off the fuel pump and power supply and is, therefore, address to the companies and farmers who wish to secure their agriculture or construction machines, as well as their private cars.

TK-104 s a GPS locator connected to the vehicle's electrical circuits, thanks to which it is possible to remotely shut off the fuel pump and immobilize the car. The locator can be controlled remotely via the GSM connection. The locator for tractors and other vehicles has been equipped with a speaker which allows eavesdropping of sounds in the vehicle’s surrounding. The locator has been made of sturdy components which protect the device against humidity and dust.

Key features of the GPS locator for tractors, agriculture machines, and cars

  • GEO-FENCE area

    GEO-FENCE permitted zone

    Geo-Fence is a function which enables you to define the zone where the vehicle can move. It is a good protection against theft, as well as dishonest employees using company equipment under the counter.

  • Watertight

    Damp resistant of the of the TK-104 GPS locator for tractors, construction machines, and cars

    The GPS locator housing is made of a rubberized solid material which protects electronic components against damp and humidity and meets the IPX5 protection class.

  • Work time for Locator GPS

    Operation time and power supply of the of the TK-104 GPS locator for tractors, construction machines, and cars

    The TK-104 GPS locator is powered by the built-in 6000 mAh 3.7 V rechargeable battery which is able to work up to 50 days depending on the frequency of reporting. When reporting every minute working time is shortened to 20 days.

  • Over speeding alarm

    Speeding alarm on GPS locator TK-104

    An important function of a supervisor is the ability to receive notifications of speeding. This notification will be sent by SMS.

  • Current location

    GSM data transmission of the of the TK-104 GPS locator for tractors, construction machines, and cars

    All requests made remotely whether it is reporting, current location or speeding are sent via the GSM network (GSM 850/900/1800/1900). The device supports SIM cards of all operators, however, you should remember to remove the PIN code protection. Transmission charges are calculated in accordance with the operator's price list.

  • Easy to use

    Electrical circuit cut-off

    Using remote access via SMS messages, it is possible to cut off the electric circuit, which is extremely important when the vehicle has been stolen.

  • IMPORTANT!
  • The specification applies typical values for the operating time and location accuracy. They can vary depending on the strength of the GPS locator signal, which is beyond our control.
Specification of the TK-104 GPS locator for tractors, construction machines and cars
1depending on the ambient conditions
Chipset GPSSIRF3
Sensitivity of the TK-104 GPS locatorstandard -159 dBm
Receiver sensitivityclass II RBER (-107 dBm)
Accuracy of the TK-104 GPS locator5 - 10 m 1
Start-up time
  • Cold Start: 60 s
  • Warm start: < 35 s
  • Hot Start: < 1 s
Live viewyes
Input dynamic range of the of the TK-104 GPS locator for tractors, construction machines and carsfrom -15 till -107 dBm
Compatibility GPS850/ 900/ 1800/ 1900
Class of the of the TK-104 GPS locator for tractors, construction machines and carsGPRS Class B
Multichannel transmission classGPRS multislot class 12
Maximum frequency error of the of the TK-104 GPS locator for tractors, construction machines and cars< 5°
Radiation power of the TK-104 GPS locator33 dBM +-2 dBm
Power supplyLi-Poly battery 6000 mAh, 3,7 V
Work time of the of the TK-104 GPS locator for tractors, construction machines and cars
  • in standby mode without position reporting: do 50 dni
  • reporting each 1 min till 20 days
Dimensions95 × 60 × 39 mm
Weight of the TK-104 GPS locator300 g
Inbox
  • Locator GPS TK-104
  • Wiring
  • External antenna
  • User manual

Specification

Specification of the TK-104 GPS locator for tractors, construction machines and cars
1depending on the ambient conditions
Chipset GPSSIRF3
Sensitivity of the TK-104 GPS locatorstandard -159 dBm
Receiver sensitivityclass II RBER (-107 dBm)
Accuracy of the TK-104 GPS locator5 - 10 m 1
Start-up time
  • Cold Start: 60 s
  • Warm start: < 35 s
  • Hot Start: < 1 s
Live viewyes
Input dynamic range of the of the TK-104 GPS locator for tractors, construction machines and carsfrom -15 till -107 dBm
Compatibility GPS850/ 900/ 1800/ 1900
Class of the of the TK-104 GPS locator for tractors, construction machines and carsGPRS Class B
Multichannel transmission classGPRS multislot class 12
Maximum frequency error of the of the TK-104 GPS locator for tractors, construction machines and cars< 5°
Radiation power of the TK-104 GPS locator33 dBM +-2 dBm
Power supplyLi-Poly battery 6000 mAh, 3,7 V
Work time of the of the TK-104 GPS locator for tractors, construction machines and cars
  • in standby mode without position reporting: do 50 dni
  • reporting each 1 min till 20 days
Dimensions95 × 60 × 39 mm
Weight of the TK-104 GPS locator300 g

Inbox

  • Locator GPS TK-104
  • Wiring
  • External antenna
  • User manual
