Military Night vision goggles PVS-7 with the fastening system has one amplifier dividing vision to both eyes. Waterproof causing. as well as a lightweight and impact-resistant design allows for operation in all ambient conditions.
built-in
up to 1 m
up to 40 h
AA batteries
Operation of the second generation of night vision devices is based on a microchannel plate, which supports all night observations. The principle of its operation is based on knocking the electrons out of a photocathode and then moving them and make them knock out more electrons from a plate, which results in significant image enhancement.
Military Night vision PVS-7 goggles of second generation made by the Canadian company GSCI are characterized by low weight, thoughtful and smart design, as well as the simple and intuitive operation. The device is waterproof up to 1 meter and shock resistant. It's also resistant to a thermal shock (high, low temperature) and other harsh atmospheric factors. Built-in IR illuminator allows for observation in case of very poor lighting. "Automatic Brightness Control" - a brightness control system is a functionality which simultaneously protects a user against a glare and a device from damage due to too strong and/or sudden illumination. In addition, there are caps in the sales package that allow to check efficiency of a device during a daytime, without exposure to sunlight.

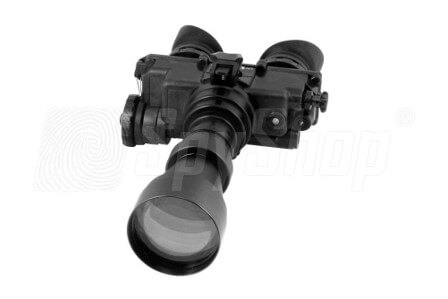

Amongst dedicated accessories in the offer of the manufacturer (imported upon an individual order) there are optional lenses with x3 and x5 magnification. The lenses enable to turn the device into binoculars in easy way. A head mount assembly supplied with a kit allows a user to act hands-free, what offers such a user additional opportunities, e.g. to fire a successful shot. Night vision goggles are powered by 2 AA batteries, which allow for observation for about 40 h, as well as instant battery exchange in case of discharge.
Military Night vision goggles PVS-7 have been designed with a view to all types of night activities. Optional accessories allow for expansion of equipment and adaptation to individual needs.
Warranty
The manufacturer provides the 7-year warranty on the device.
Specification of the Military night vision goggles PVS-7 with IR illuminators for night tactical actions | |||||
---|---|---|---|---|---|
1Flip-Up-Off is a function of automatic shutdown of the device in case of using the installation grip on a head or a helmet. | |||||
Image amplifier |
| ||||
Photocathode |
| ||||
Optical zoom | 1× | ||||
Lens | 27 mm, F/1.2 | ||||
Angle of view | 40° | ||||
Depth of field | 25 mm up to ∞ | ||||
Diopter adjustment | -6 up to +2 | ||||
Built-in IR illuminator | tak | ||||
Power supply | 2 × AA battery | ||||
Operation time | up to 40 h | ||||
Discharge indicator |
| ||||
Steering | direct | ||||
Amplification control | tak | ||||
Protection from bright light | yes | ||||
Automatic shutdown | yes | ||||
Flip-Up-Off function * | yes | ||||
Operation temperature | -40°C up to +50°C | ||||
Water-resistance |
| ||||
Dimensions of the military night vision goggles | 145 × 150 × 85 mm | ||||
Weight | 0,45 kg |
PVS-7-MA1 | PVS-7-GA2 | PVS-7-GA3 | PVS-7-XR-5 | PVS-7-4G | |
---|---|---|---|---|---|
Generation | 2+ | 3 | 3 | XR5 technology | 4G technology |
Photocathode | Multi Alkaline | Gallium arsenide | Gallium arsenide | Multi Alkaline | Multi Alkaline |
FOM | 1000-1250 | 1600-1799 | 1800-1950 | 1600-1799 | 1800-2200 |
Signal to noise ratio (@108 μlx) | 17-22 | 24-26 | 25-28 | 25-26 | 28-30 |
Resolution (lp/mm) | 54-64 | 64-66 | 65-69 | 64-68 | 64-72 |
Inbox |
---|
Specification of the Military night vision goggles PVS-7 with IR illuminators for night tactical actions | |||||
---|---|---|---|---|---|
1Flip-Up-Off is a function of automatic shutdown of the device in case of using the installation grip on a head or a helmet. | |||||
Image amplifier |
| ||||
Photocathode |
| ||||
Optical zoom | 1× | ||||
Lens | 27 mm, F/1.2 | ||||
Angle of view | 40° | ||||
Depth of field | 25 mm up to ∞ | ||||
Diopter adjustment | -6 up to +2 | ||||
Built-in IR illuminator | tak | ||||
Power supply | 2 × AA battery | ||||
Operation time | up to 40 h | ||||
Discharge indicator |
| ||||
Steering | direct | ||||
Amplification control | tak | ||||
Protection from bright light | yes | ||||
Automatic shutdown | yes | ||||
Flip-Up-Off function * | yes | ||||
Operation temperature | -40°C up to +50°C | ||||
Water-resistance |
| ||||
Dimensions of the military night vision goggles | 145 × 150 × 85 mm | ||||
Weight | 0,45 kg |
PVS-7-MA1 | PVS-7-GA2 | PVS-7-GA3 | PVS-7-XR-5 | PVS-7-4G | |
---|---|---|---|---|---|
Generation | 2+ | 3 | 3 | XR5 technology | 4G technology |
Photocathode | Multi Alkaline | Gallium arsenide | Gallium arsenide | Multi Alkaline | Multi Alkaline |
FOM | 1000-1250 | 1600-1799 | 1800-1950 | 1600-1799 | 1800-2200 |
Signal to noise ratio (@108 μlx) | 17-22 | 24-26 | 25-28 | 25-26 | 28-30 |
Resolution (lp/mm) | 54-64 | 64-66 | 65-69 | 64-68 | 64-72 |
