Spy detector of surveillence devices ST-031M Piranha-M for bugs, microphones, and hidden cameras detection

Spy detector of surveillence devices ST-031M Piranha-M is a multifunctional new solution that enables detection and location of various kinds of technical means of unauthorized obtaining of classified information. The device also enables to manage different tasks related to assessment of effectiveness of the measures taken to protect against leakage of information. „Piranha” offers the best performance for money among the alike solutions available on the market.

  • Frequency range

    Frequency range of the spy detector

    0,05 - 4420 MHz

  • Bandwidth range

    Wavelength

    770 - 1000 nm

  • The bandwidth

    Bandwidth

    10 kHz

  • LCD screen

    LCD colour screen

Spy detector of surveillence devices ST-031M Piranha-M for bugs, microphones, and hidden cameras detection is an upgraded and more sensitive version of the model ST-031. The device set has been equipped with a number of functional accessories which enable e.g. searching telephone lines for detecting microphones.

The searches for all kinds of telephone signals very well (GSM, UMTS, LTE, WiFi), moreover, it is able to distinguish between the GPS locator and BTS signal. The STATUS function helps to define and store the safe signal that is present e.g. in the office. It is also possible to scan power network directly using an adapter. Just connect the detector to the power network and in just a few seconds all detected threats, e.g. PLC cameras, will be displayed.

Checking the power network the user will easily locate the radio transmitter on the telephone line. The ST-031M Piranha-M set contains a number of functional tools which help to agitate the microphone regardless of the wire end.

The spy detector has been equipped with a sensor of electro-magnetic field that is generated by every active electrical appliance. The set comes with head phones which enable to listen to the surrounding searching for changes in the fields. This solution enables to detect all kinds of voice recorders, including miniature ones.

The device is a spy detector and analyser of all kinds of transmitters, wiretaps on power networks and telephone lines, as well as all kinds of devices that could contribute to the leakage of classified information.

Key features of ST-031M Piranha-M spy detector

  • detection of a wide range of listening devices,
  • detection and locating of devices operating in different physical fields that are used in secret obtaining of information,
  • three independent detection channels designed for analysing signals using different frequency ranges - from very low frequencies to microwaves,
  • detection and locating of radio transmissions such as:
    • analogue radio wiretaps using FM, WFM, AM and hybrid frequencies with possibility of audio demodulation and a source locating function,
    • devices communicating in mobile networks GSM, UMTS, CDMA, 3G, LTE distinguishing BTS station signals and specific devices,
    • very high frequency transmitters,
    • telephone line transmitters,
    • wiretaps and PLC cameras on electrical power lines,
    • radio stethoscopes,
    • hidden video cameras using radio channel for image transmission
    • transmitters used to monitor moving objects (people, vehicles, goods),
    • GPS locators,
    • unauthorized radio stations, wireless headsets, radio phones,
    • radio modems, digital wireless access points, WiFi and Bluetooth devices,
    • line transmitters.
  • identification of digital data transmission standards (GSM, DECT, Bluetooth, WiFi and etc.) including differentiation and possibility to designate signal status of BTS stations and mobile phones,
  • electro-magnetic field sensor of low frequencies enables to locate dictaphones and recorders that do not transmit data via radio!,
  • LCD colour display enables analysis of the measured signals in spectrum analysis and oscilloscope mode,
  • Intuitive menu and simple operation with 12 buttons,
  • Independent power supply allows for versatile use of the device in any conditions,
  • possibility to connect the detector to the computer to log events, make visualizations and archive results as well as to control system operation via the PC and to update the system software.
Specification
Specification
Specification of the Spy detector of surveillence devices ST-031M Piranha-M for bugs, microphones, and hidden cameras detection
Main unit
Selective detector HF-channel 1
  • Frequency range: 140-4420 MHz
  • Bandwidth: 1-40 MHz
  • Scanning speed 40 GHz / s
  • variation in the frequency response: ± 5 dB
  • The minimum strength of signal detected in the automatic mode: ≤ –65 dBm
  • Dynamic range: 50 dB
  • Demodulation: AM, FM, WFM
  • Input impedance of 50 Ω
Scanning receiver - Channel 2
  • Frequency range: 0.05 - 140 MHz
  • Bandwidth: 40 kHz
  • Scanning speed: 35 MHz / s
  • Variation in the frequency response: ± 5dB
  • The minimum strength of signal detected in the automatic mode: -25 dBμV
  • Dynamic range (without attenuator): 65 dB
  • Attenuation integrated supressor 20 dB
  • Demodulation: AM, FM
  • Input impedance of 600 Ω
Low frequency amplifier - channel 3
  • Frequency range: 0.025 - 100 kHz
  • Variation in the frequency response: ± 1dB
  • The internal noise level: -109 dBμV
  • Gain 12, 24, 36, 48 dB
  • Input impedance: 100 kΩ
Display
  • type: LCD TFT 3,2”
  • Resolution: 320 × 240
  • colors: 65000
Power supply of the Spy detector of surveillence devices ST-031M Piranha-M
  • Battery: Li-Poly 3.7V
  • Power consumption: 1.2-2.5 W (depending on the operation mode)
  • Operating time at maximum power consumption: Up to 7 h
  • Time of full battery charge: 7 h
Dimensions of the Spy detector of surveillence devices ST-031M Piranha-M
  • CPU: 175 × 83 × 36 mm
  • set in carrying case: 390 × 310 × 170 mm
Weight
  • CPU: 430 g
  • Set: 3.8 kg
Multi-purpose adapter BWLC031M inspection cable system
The maximum allowable voltage 300V AC/DC
The insulation resistance of input / output > 10mΩ
Mode - Channel 2
  • Frequency range: 0,15-140 kHz
  • Maximum allowable signal level: -10 dBV
  • Input impedance (symmetrical): 1007Ω
Mode - Channel 3
  • Frequency range: 0,15-100 kHz
  • Maximum allowable signal level: 10 dBV
  • Attenuation of the signal in phase: > 65 dB
  • Input impedance (symmetrical): 27Ω
High frequencies sensor
The frequency range 3-12 GHz
Sensitivity Threshold 2*10-10 W
Polarization linear
Angle 60 – 90°
Dimensions 100×45×25 mm
Weight 70 g
Cable length 95 cm
The inductive magnetic field sensor
Frequency range 0,07-100 kHz
Range of measured magnetic induction 0,5-2000 nT
Damping uniform magnetic field in the differential mode > 30 dB
Dimensions 205×20 mm
Weight 110 g
Cable length 95 cm
Test tone generator
Built-in speaker RMS 3W, 150-1800 Hz
Memory card slot microSD
Supported audio format mp3
Power supply of the Spy detector of surveillence devices ST-031M Piranha-M Li-Ion 600 mAh
Operation time up to 3 h
Full charging time 3 h
In box
In box
  • Spy detector of surveillence devices ST-031M Piranha-M
  • Cables adapter BWLC031M
  • Cables adapter multi-core multi-wire
  • 2 × telephone adapters
  • Cables:
    • Connection to the adapter BWLC031M CH2
    • Connection to the adapter BWLC031M
    • PC connection
    • Power to the player Ritmix
  • Generator of potential difference supply lines
  • Antenna supressor 20 dB, 50 Ohm, 3-1616
  • The player with microSD speaker Ritmix
  • Sensor HF - antenna (UWBD 031M)
  • Sensor electro-magnetic field - antenna
  • The main unit ST-031M-M Piranha
  • Telescopic antenna
  • 9V battery
  • Pendrive with a computer program
  • 2 × end of the wire "crocodile"
  • Connectors and telephone cables RG45 8 × 4, 8 × 6, 8 × 8
  • Headphones Ritmix
  • Charger
  • Waterproof case
  • User manual
Reviews
Reviews

Add a review

Add a review

  • Compliance with the description:
  • Durability:
  • Quality:
  • Usability:
From the same category

Lornet 24 - Lightweight Non-linear detector

View more

Availability: Available

Ask for price
  • Lornet 24 - Lightweight Non-linear detector detects all types of hidden devices
  • Compact nonlinear junction detector
  • Effective detection range: 10cm - 1m
  • 3 hour battery life
  • Wireless headphones

Spectrum analyzer Oscor Blue for portable RF signals detection and analysis

View more

Availability: Available

Ask for price
  • For detection of surveillance devices
  • Demodulation of video, AM, FM, SSB, Sub-carrier
  • Easy-to-operate with a touchscreen
  • Instant analysis of the band in just 1 sec
  • 24 and 8 GHz bands

Wiretap detection system DigiScan Delta X G2 6/12 GHz - wide spectrum analyzer up to 6 GHz - 12 GHz

View more

Availability: Available

16 909,23 $

16 909,23 $ (brutto)

  • 4 operation modes (RF Sweep, Guard 24/7, Car Tracker Detector, Signal Analyzer)
  • Very high sensitivity and long detection distance
  • Seeks out digital standards (GSM, 3G, 4G/LTE, 5G (less than 6 GHz), Bluetooth, WiFi, DECT)
  • Real time spectrum analysis
  • Powered by tablet or laptop (via USB)

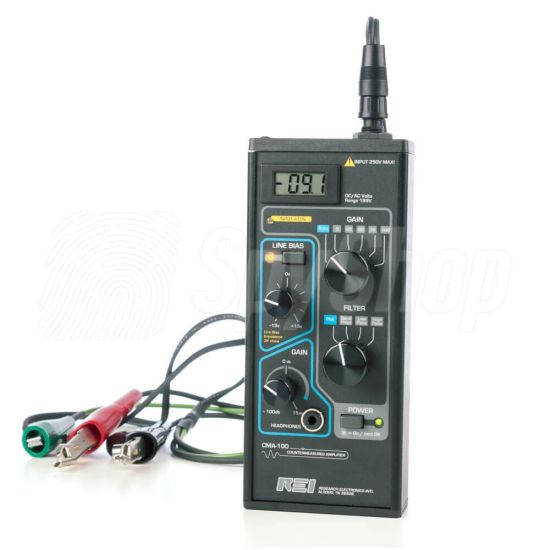

CMA-100 Countermeasures Amplifier for detection of surveillance devices, which are wired in a building

View more

Availability: Available

Ask for price
  • Highly sensitive
  • Portable construction
  • Display
  • Filters positioning
  • intuitive operation

DigiScan Delta 100 X 4/12G system for detection of wiretaps, micro cameras and other surveillance devices

View more

Availability: Available

Ask for price
  • Wide scanning range
  • Detecting continuous and intermittent transmissions
  • Scanning speed 100MHz
  • Graphical display of results
  • Instant detection of the sound source

Spy detector of surveillance devices - Katran Lux NLJD

View more

Availability: On order

Ask for price
  • Spy detector of surveillance devices - Katran Lux NLJD
  • Able to locate any non-linear junctions
  • Detects even switched off devices!
  • Increased effectiveness due to a DSP
  • User-friendly and compact

Thermal nonlinear connector detector Lynks Ace - identification of detected devices, low false alarm rate

View more

Availability: Available

Ask for price
  • Operating frequency range: 2.404 GHz - 2.472 GHz
  • Receive sensitivity: less than -140 dBm
  • Thermal imaging sensitivity: < 50 mK
  • Operating time: up to 5 hours
  • Interactive interface, sound, vibration

Non-Linear Junction Detector - Orion 2.4

View more

Availability: On order

Ask for price
  • Orion 2.4 detects even inactive and unpowered devices
  • Non-Linear Junction Detector detects miniature electronics
  • Digital signal modulation and correlation algorithms
  • Compact size
  • Product of Research Electronics International

Outdoor spectrum analyzer - Spectran XFR V5 Pro

View more

Availability: Available

Ask for price
  • Frequency range of the outdoor spectrum analyzer from 1 HZ up to 20 GHz
  • GPS built-in
  • Panoramic display Full HD 15,6"
  • Processor Intel i7
  • Disc capacity up to 8 TB

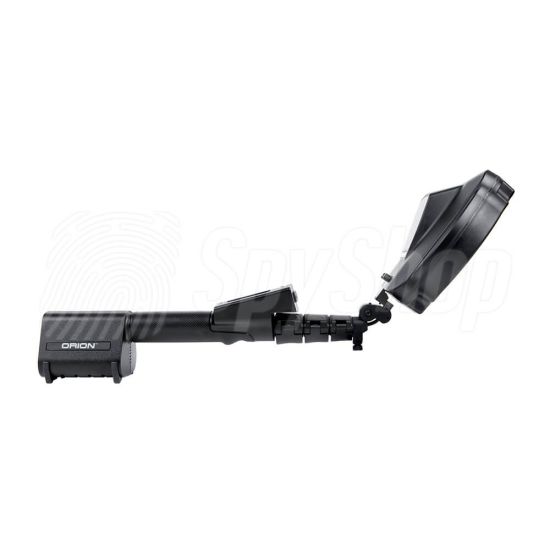

Orion 900 HX – NLJD – detector of hidden surveillance devices in hard-to-reach places

View more

Availability: Available

Ask for price
  • Penetration of high-density materials
  • Reception of 2 and 3 harmonics
  • Touchscreen in sight
  • Operation time of 4 hours
  • Detection of cameras, wiretaps, cell phones

RF Spectrum Analyzer - OSCOR Green OGR 8GHz/24GHz

View more

Availability: Available

Ask for price
  • Designed for detection of spy equipment
  • Portable OSCOR Green OGR 8GHz/24GHz - RF Spectrum Analyzer
  • Advanced software
  • List of all signals and a spectrogram
  • AM, FM SSB, Sub-carrier, video demodulation

Electronic bug detector Orion HX Deluxe for detection of non-linear junctions with two antennas

View more

Availability: Available

Ask for price
  • 2 Antennas 900 MHz and 2,4 GHz
  • Reception of 2 and 3 harmonics
  • Detection wiretaps, video cameras and phones
  • Lightweight - convenience of operation
  • Adjustable power 3,3 and 1,4 W

Non-Linear Junction Detector - Lornet Star

View more

Availability: On order

Ask for price
  • Signal in bandwidth from 0-800 MHz or 0-2,4 GHz or 0-3,6 GHz depending on the version
  • Non-Linear Junction Detector detects miniature devices e.g. SIM cards
  • Operation time – up to 3 hours
  • Receiver sensitivity -110dBm
  • Lightweight up to 1 kg

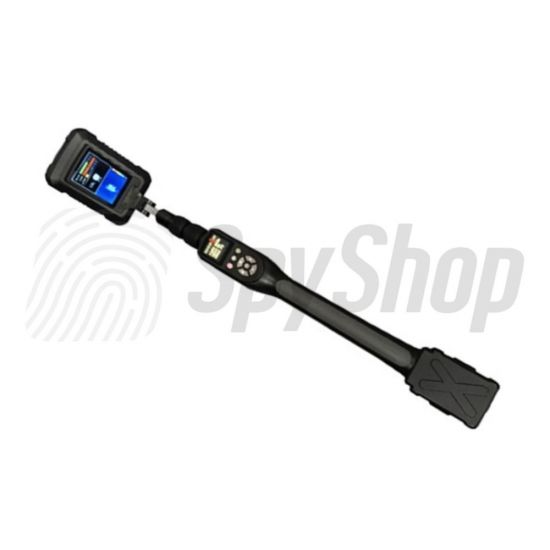

Non-linear junction detector LYNKS PRO - device identification, clear interface, low false alarm rate
