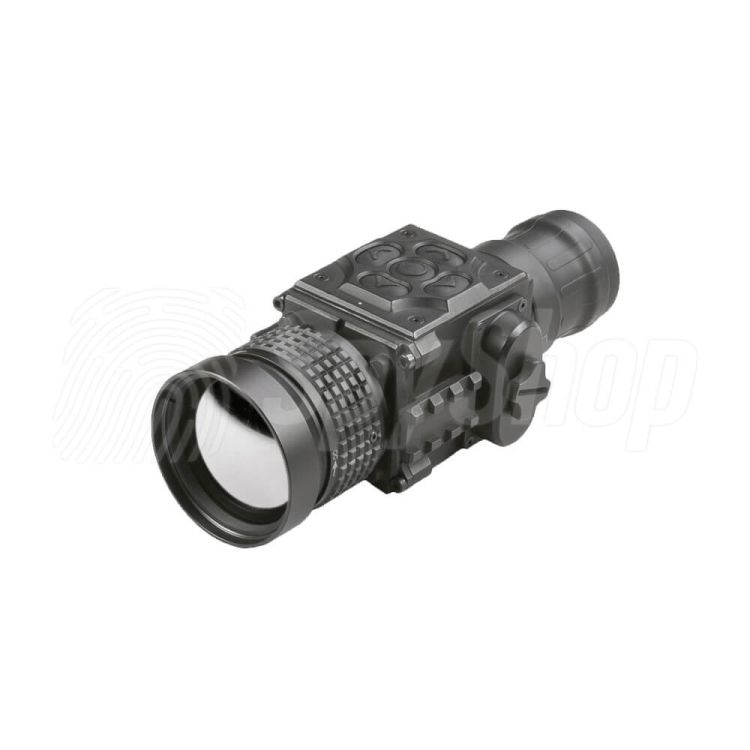

Thermal clip on AGM Global Vision TC50 384 for night operations

  • Refresh Rate 50 Hz
  • PIP function (picture in picture)
  • Up to 44 hours of operation
  • 50 or 38 mm lens
  • External WiFi module

Availability: AvailableInStock

Options:


£3,579.00tax inc.

Add to cart

  • Print

More info

Thermal clip on AGM Global Vision TC50 384 for night operations

AGM Global Vision TC50 384 is a professional Thermal clip on that will make night-time observation more efficient than ever. Advanced components and solid workmanship result in equipment that you can rely on in every situation.

  • Supported bands

    50 Hz

  • Work time

    Work time

    up to 7 h

  • WiFi

    WiFi module

  • Waterproof

    Water-resistance

    IP67

AGM Global Vision for decades has been supplying advanced thermovision products for special tasks. The Thermal clip on TC50 384 is another modern product that meets the expectations of even the most demanding users. The equipment has been designed for effective field observation. Thanks to the solid construction and water resistance, the adapter works even in difficult weather conditions and in the temperature range from -40°C to + 70°C. In addition, great observational potential is guaranteed by the high resolution of 384x288 at a refresh rate of 50 Hz. Another important feature is also the choice of up to 11 color palettes.

The most important features of the Victrix TC50 384 Thermal clip on

  • Components

    LIGHT AND EFFICIENT

    The Thermal clip on AGM Global Vision TC50 384 has excellent parameters. A 38 mm and 50 mm lens with F/1.0 light level and a maximum of four times digital magnification guarantee excellent visibility even in the most adverse conditions. The device also has a modern stadia parametric rangefinder that will help you determine the distance to your target. The device is also very compact. It's dimensions:192 x 70 x 64 mm and a weight of 0.5 kg significantly facilitate effective use.

  • Compatible components

    OPTIONAL COMPONENTS

    The manufacturer has foreseen the possibility of installing optional external devices for even greater efficiency and potential of the thermal imager. For example, the Battery Pack will increase the device's operating time by up to 44 hours, and the compact image recorder will allow you to record your observations. It is also possible to connect an external Wi-Fi module.

  • Tactical observation

    TACTICAL OBSERVING EQUIPMENT

    AGM Global Vision for decades has been supplying advanced thermovision products for special tasks. The TC50 384 Thermal clip on is another modern product that will meet the expectations of even the most demanding users. The equipment has been designed for effective field observation. Thanks to the solid construction and water resistance, the device works even in difficult weather conditions and in the temperature range from -40°C to + 70°C. In addition, great observational potential is guaranteed by the high resolution of 384x288 at a refresh rate of 50 Hz. Another important feature is also the choice of up to 11 color palettes.

AGM Global Vision TC50 384

The most important features of the AGM Global Vision TC50 384 Thermal clip on

  • IP67 rating
  • Refresh rate 50 Hz
  • optional Wi-Fi module and video recording
  • 11 color palettes
  • stadia parametric rangefinder
  • 50 mm or 38 mm lens
  • F/1.0 bright lens
  • 384x288 sensor resolution
  • smooth digital zoom 2×, 4× with PIP function
  • 3-year manufacturer's warranty

Specification (EN)

  • ­

    Specification

    Information brochure

­Specification of the thermal clip on AGM Global Vision TC50 384
Sensor
  • uncooled
  • microbolometer
  • Ulis
Resolution384×288
Image refresh50 Hz
HD screen1024×786
Optical zoom
Digital zoom1×, 2×, 4×, PIP
Lens
  • 38 mm; F/1;0
  • 50 mm; F/1;0
WiFi moduleavailable on order
Field of view7.5°×5.6°
Depth of field10 m do ∞
Diopter adjustmentfrom -5 up to +5
Video recorderoptional
ScreenHD 1024×768
Video formatAVI
Power supply
  • 2× CR123A 3 V lithium battery
  • constant power supply: 5 V USB / 3,6~7,2
Operation time of the thermal clip on
  • up to 5 h
  • optionally up to 44 hours (Battery Pack)
Pixel size17 μm
Color palette settings11 Color palettes
Interface
  • micro-USB (Power bank 5 V)
  • universal connection S620 (Power In, Analog Video In/Out, external Wi-Fi module, external HD recorder, external Battery Pack)
Casingaircraft aluminum
Operation temperaturefrom -40°C up to +70°C
Dimensions192×70×64 mm
Weight500 g
Inbox
  • Thermal clip on AGM Global Vision Victrix (selected version)
  • Neck strap
  • USB cable
  • Protective bag
  • Optics cleaning cloth
  • User manual
  • 3 years warranty

Optional accessories:

  • Battery Pack Kit
  • Transport box
  • External HD video recorder
  • External WiFi module
  • Titanium tripod with handle

Manufacturer

AGM Global Vision

AGM Global Vision - leading company in production of a wide variety of optical devices

Specification

­Specification of the thermal clip on AGM Global Vision TC50 384
Sensor
  • uncooled
  • microbolometer
  • Ulis
Resolution384×288
Image refresh50 Hz
HD screen1024×786
Optical zoom
Digital zoom1×, 2×, 4×, PIP
Lens
  • 38 mm; F/1;0
  • 50 mm; F/1;0
WiFi moduleavailable on order
Field of view7.5°×5.6°
Depth of field10 m do ∞
Diopter adjustmentfrom -5 up to +5
Video recorderoptional
ScreenHD 1024×768
Video formatAVI
Power supply
  • 2× CR123A 3 V lithium battery
  • constant power supply: 5 V USB / 3,6~7,2
Operation time of the thermal clip on
  • up to 5 h
  • optionally up to 44 hours (Battery Pack)
Pixel size17 μm
Color palette settings11 Color palettes
Interface
  • micro-USB (Power bank 5 V)
  • universal connection S620 (Power In, Analog Video In/Out, external Wi-Fi module, external HD recorder, external Battery Pack)
Casingaircraft aluminum
Operation temperaturefrom -40°C up to +70°C
Dimensions192×70×64 mm
Weight500 g

Inbox

  • Thermal clip on AGM Global Vision Victrix (selected version)
  • Neck strap
  • USB cable
  • Protective bag
  • Optics cleaning cloth
  • User manual
  • 3 years warranty

Optional accessories:

  • Battery Pack Kit
  • Transport box
  • External HD video recorder
  • External WiFi module
  • Titanium tripod with handle
