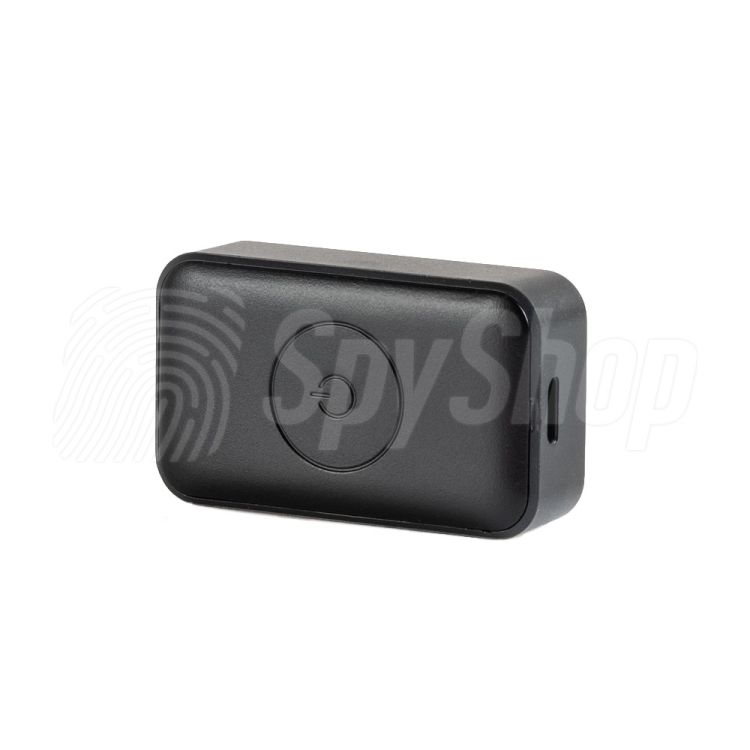

The G20 is a simple vehicle tracker with a GPS transmitter that allows you to quickly locate a fleet vehicle, partner or child. Convenient access through the application provides full control over the location and device.
Thanks to GSM and GPS antennas, the vehicle tracker allows location with an accuracy of 5 - 10 m.
The device can use SIM cards from any operator. It is important that the card is not protected by a PIN code. GSM communication allows for quick management of the vehicle tracker from anywhere in the world.
The housing of the vehicle tracker GPS G20 has been made in accordance with the IPX5 standard, which protects electronics against splashing and dust.
To minimize the size, the GPS transmitter uses a 650 mAh Li-Poly battery. It is a compromise between the dimensions of the tracker and the battery. G20 can work up to 9 days in standby mode or up to 100 hours when reporting every 10 minutes.
The data collected by the vehicle tracker is saved on a free platform that stores the archive from the last 7 days. The platform has no external support.
| Specification of the vehicle tracker GPS G20 | |
|---|---|
| 1 full visibility of the sky | |
| GPS Chipset | MT2503/ MTK3333/ MTK5931 |
| GPS antenna | integrated |
| Sensitivity |
|
| Accuracy | typical: < 5 - 10 m |
| Start time 1 |
|
| 4 range GSM module | 850/ 900/ 1800/ 1900 MHz |
| Multichannel transmission class | GPRS multislot class 12 |
| Phase shift error RMS | < 5° |
| Maximum RF radiation power | 33 dBM +/-2 dBm |
| Input dynamic range | from -15 up to -108 dBm |
| Receiver sensitivity | II class RBER (-107 dBm) |
| Frequency stability | < 2,5 ppm |
| Maximum frequency error | ±0,1 ppm |
| Power supply | Li-Poly 650 mAh, 3,7 V battery |
| 29/5000 Power consumption in standby mode | < 10 μA |
| Operation time of the vehicle tracker |
|
| Water resistance | IPX5 standard |
| Dimensions | 50 × 30 × 15 mm |
| Weight | 60 g |
| Inbox |
|---|
