Description

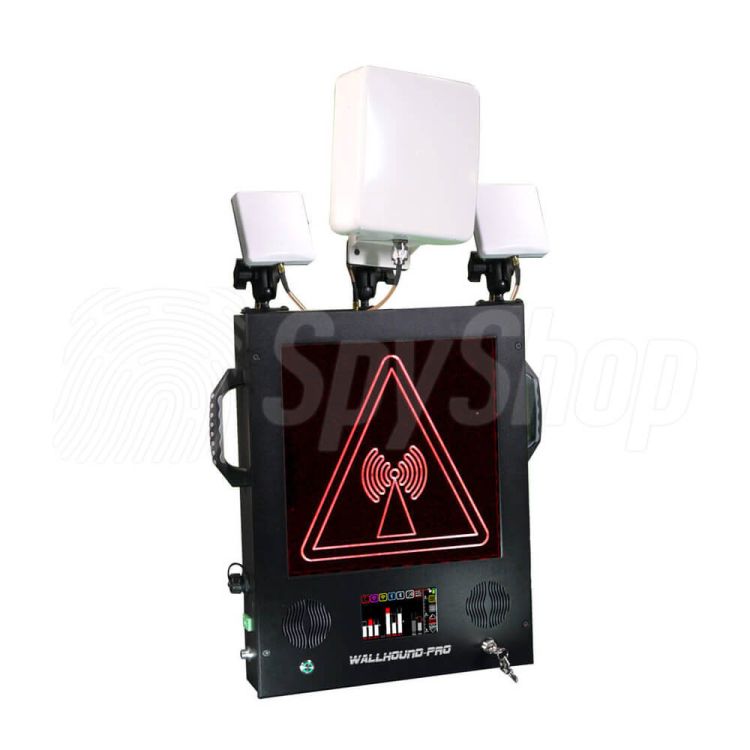

WallHound Pro - Wireless transmissions detection system / GSM / Bluetooth / WiFi /
WallHound Pro made by the renowned Berkeley Varitronics Systems brand is an autonomously operating tool for detecting Wi-Fi networks, cellular bands, Bluetooth and Bluetooth Low Energy, via tablets, mobile phones, smartwatches and laptops. A practical and easy-to-use solution that works where electronic devices are not allowed - e.g. conference and examination rooms, cinemas, theaters, museums and critical infrastructure facilities.
Regular use of a smartphone, tablet and smartwatch has become quite common today. However, there are places where it is strictly forbidden or even illegal to bring these devices in. The WallHound-Pro professional broadcast detection system is designed to prevent such practices. The equipment automatically detects the signal emitted by mobile phones, smartphones, tablets and other wireless devices in the protected room, and immediately triggers an alarm.
However, it must be remembered that the Berkeley WallHound-PRO does not allow the detection of the signal source and the exact identification of the owner of the prohibited equipment. Therefore, the system plays a preventive and deterrent role - triggering an alarm during a conference or show enables a thorough screening of participants, and the sensor view reminds visitors about the applicable prohibitions.
Examples of WallHound Pro applications
- military facilities
- cinemas, museums, theaters
- penal and correctional facilities
- courts, pre-trial detention centers
- border points
- critical infrastructure objects
- conference rooms
The most important features of the WallHound Pro detection system
-
Detecting Wi-Fi signals and more
WallHound Pro reacts very effectively to signals emitted by wireless devices: Wi-Fi, cellular bands. Bluetooth i Bluetooth Low Energy. The frequency range is 650 MHz - 3 GHz and 4.9.9 - 5.9 GHz
-
AUDIBLE AND VISIAL ALARM
Detecting a signal triggers an audible or visial alarm. Alarms are loud and visible to all employees, security personnel and customers.
-
Preventive function
The sensor deterrents the use of wireless devices in secure areas where it is prohibited or illegal.
-
Self-sufficiency
The WallHound Pro system automatically scans the room for any wireless activity. The operation of the equipment takes place with minimal interaction by the staff and without the need for a computer connection.
-
24 h/7 security
The system uses mains power, which ensures unrestricted operation day and night. Built-in battery acts as an emergency power supply allowing for 4 hours of operation.
-
Mobility

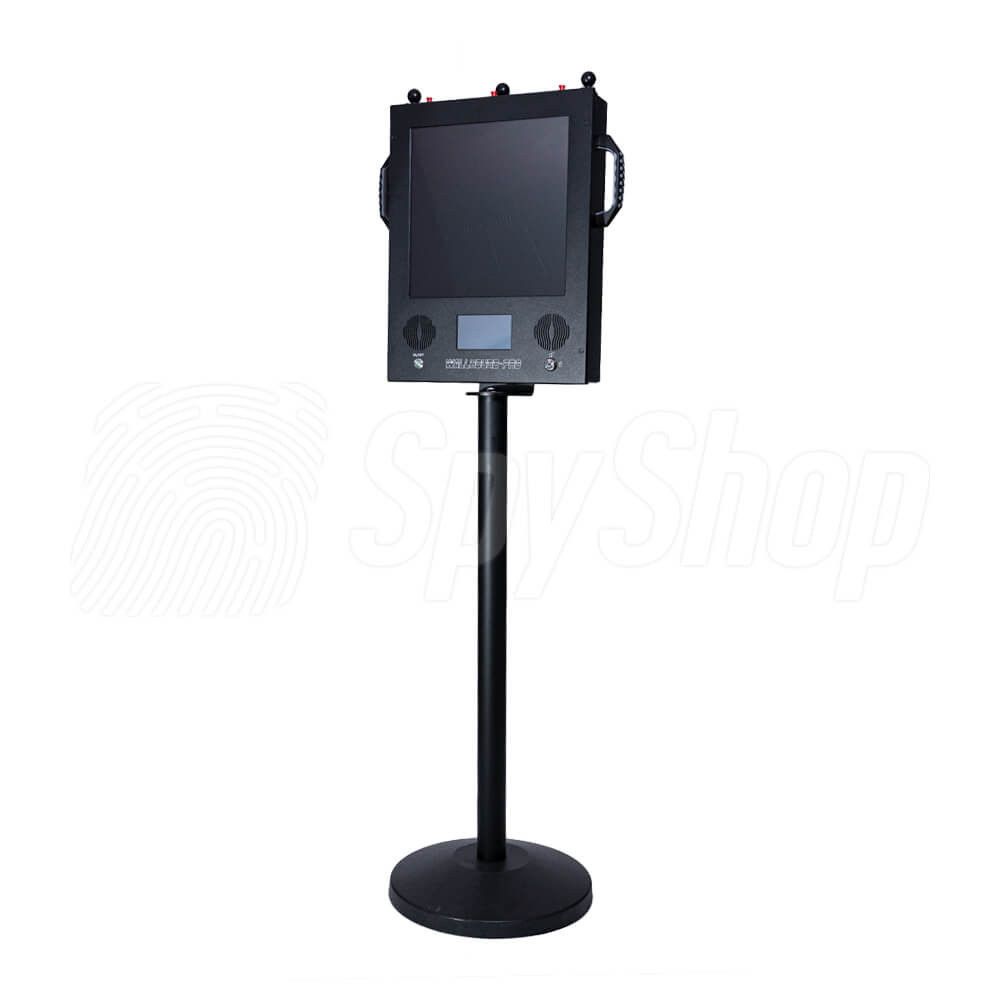

WallHound Pro has a lightweight design with small dimensions for easy transport. They can be easily mounted on a wall, staircase or any other flat surface.
-

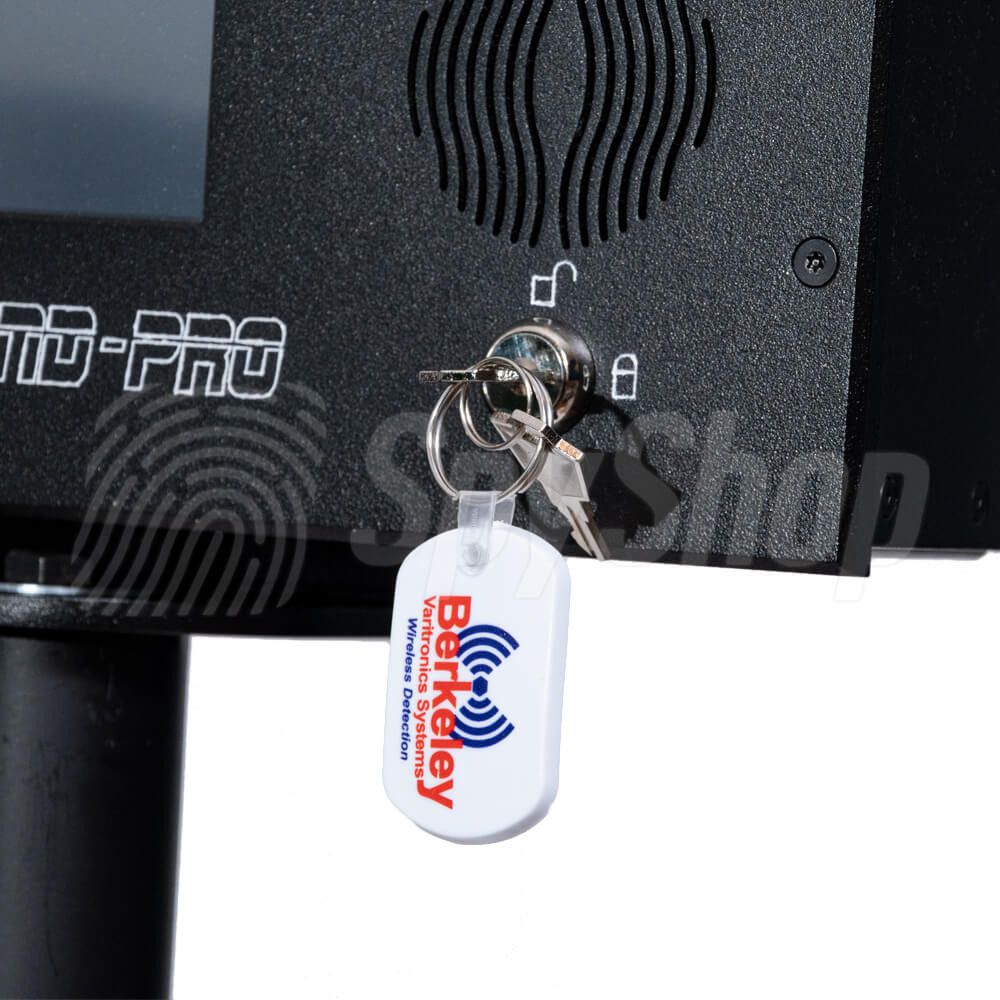

PASSWORD PROTECTION
The interface is protected with a password that prevents unauthorized access.
-
Whitelist
Devices detected by security personnel and considered safe can be entered on the so-called "Whitelist". Their presence would then not trigger future alarms.
-
Easy-to-use
All parameters are controlled from the built-in touch screen. It is possible to configure manual and automatic thresholds, detection sensitivity, volume and intensity of alarms. All procedures are intuitive and do not require specialist knowledge.
-

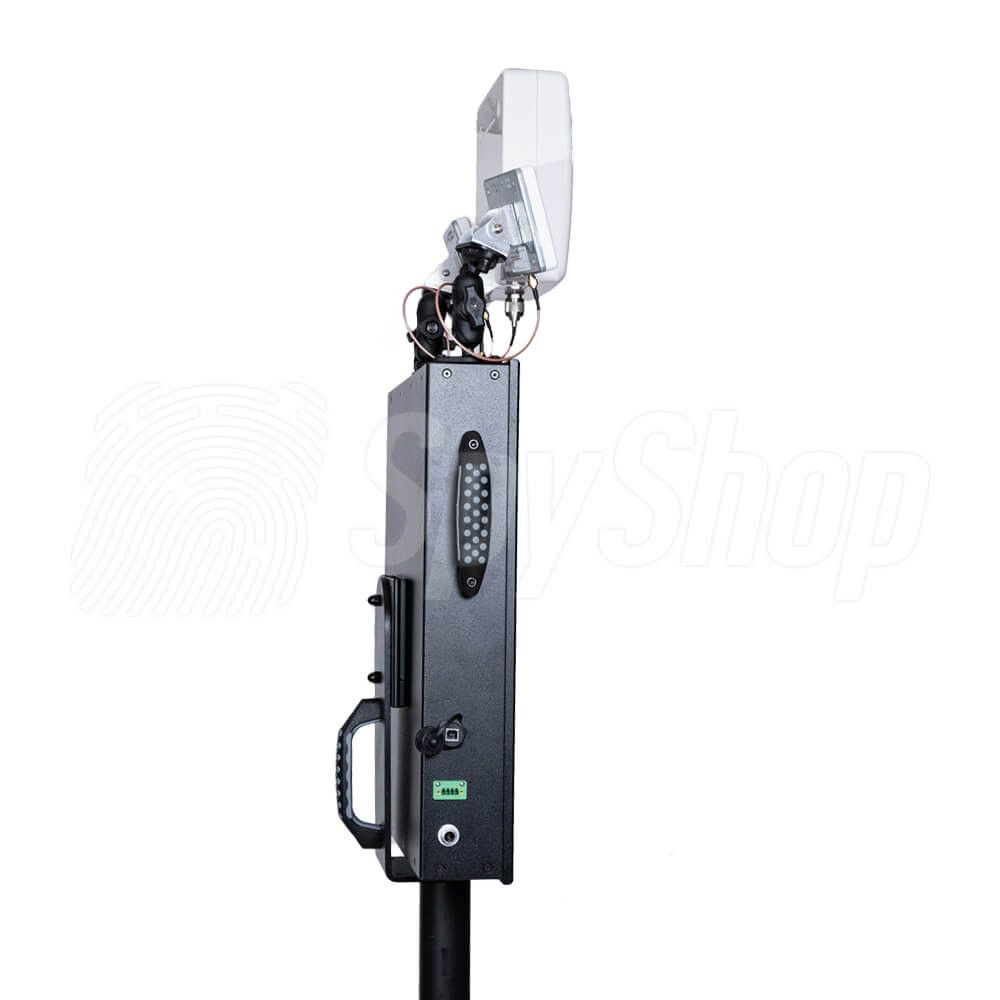

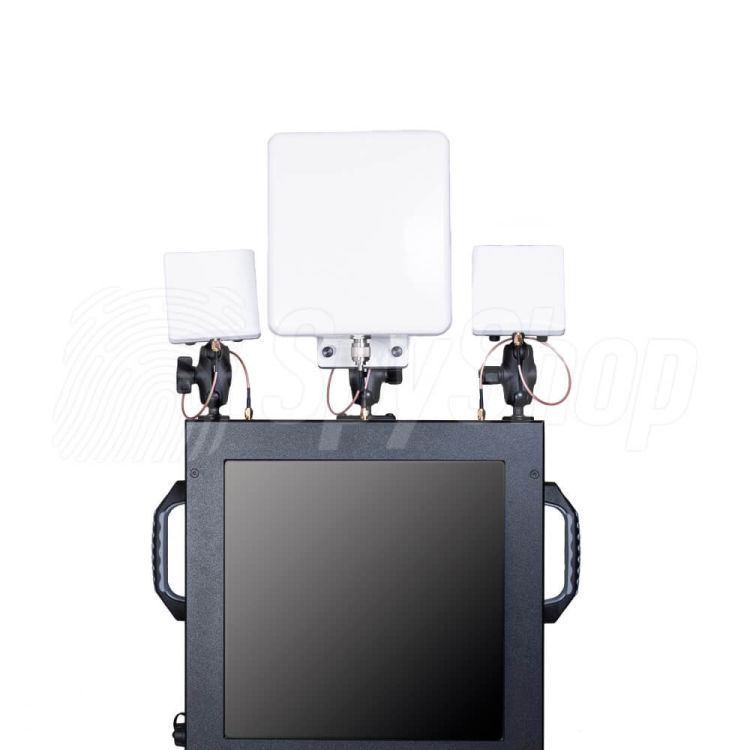

Optional antennas

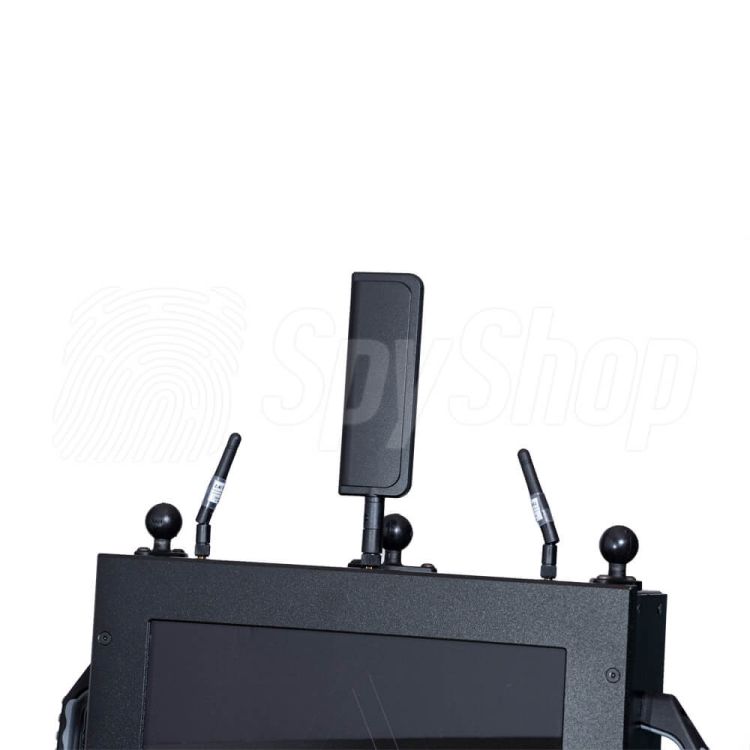

WallHound Pro supports optional directional antennas to protect specific corridors and areas without triggering alarms in areas where the use of wireless devices is allowed.
Specification
Specification of the WallHund Pro Wireless transmissions detection system / GSM / Bluetooth / WiFi / | |
---|---|
Detection |
|
Demodulation |
|
Maximum range | up to 38 m/ 76 m with additional antenna |
Dynamic range | 70 dB |
Sensitivity | -90 dBm |
Bandwidth | 4 MHz, 20 MHz |
Power supply | 110V AC and 12V DC |
Emergency power supply | accumulator - up to 4 h |
Display | TFT 480×277 |
Alarms | sound and visual |
Dimensions | 360 × 500 × 100 mm |
Weight | 7 kg |
Brand
Berkeley Varitronics Systems (BVS)
Berkeley Varitronics Systems, headquartered in the U.S. state of New Jersey, deals extensively in electronic and digital security. Founded in 1972, the company provides one-of-a-kind detectors for phones and other small electronic devices, jammers (jammers), Bluetooth transmitters, GPS locators and even weapons. The manufacturer's extensive portfolio includes a full cross-section of specialized devices, eagerly chosen by engineers and specialists in various sectors, working, for example, in the energy industry, railroads or the installation of wireless networks. Another important target group of the manufacturer are representatives of the uniformed services, concerned about the security of the areas they guard and not bringing in any unwanted devices. Berkeley Varitronics Systems' track record includes years of experience in detecting contraband, gained in cooperation with the US Prison Service.In box
- WallHound Pro Wireless transmission detection system
- Omnidirectional antenna
- Power supply
- Wall mounting handle
