Thermal imaging sight AGM Python TS75-640 - 8x magnification, reticle patterns of your choice

Thermal imaging sight AGM Python TS75-640 - 8x magnification, reticle patterns of your choice

Reviews :

Brand:

AGM Global Vision

Reference:

FLIR Tau 2 640x512 detector
17μm uncooled microbolometer
Frame rate: 30 Hz
Waterproof
Powered by standard batteries

Thermal imaging sight AGM Python TS75-640 - 8x magnification, reticle patterns of your choice

Ask for price

Delivery from Check the shipping costs

Do you need advice? Write to us

You dont know if you chose right? Leave your phone number and we will call you back

Description

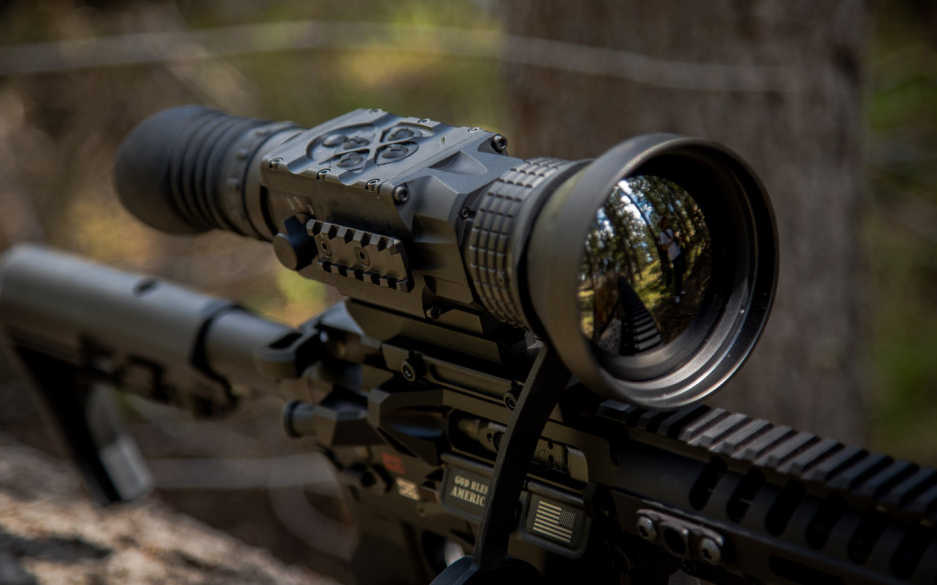

AGM Python TS75-640 thermal imaging rifle scope

The Python TS75-640 is a state-of-the-art, long-range thermal imaging sight from American company AGM. With its waterproof, rugged design and a range of optional modifications, it will perform well in all conditions.

BATTERY LIFE

up to 4 h at 20°C
DISPLAY RESOLUTION

800 x 600 pixels
DIGITAL
ZOOM

1×, 2×, 4×, 8×
STARTUP
TIME

up to 3 seconds

Designed for special tasks

The rifle scope has been manufactured from high quality aerospace aluminium alloy. This makes it a lightweight yet robust enough accessory to survive the recoil from a weapon. Its water resistance enables it to function even in extreme weather conditions.

Tailored to the mission

The Python TS75-640 can be modified in many ways. Interchange lens sets with Germanium (25mm, 50mm or 75mm) and FLIR Tau 2 detector types (336x256 or 640x512). The viewfinder will adapt to your task.

Friendly interface

The intuitive Python interface will get you used to your new equipment very quickly. The viewfinder has comfortable and ergonomic buttons, as well as a wireless remote control. The software allows you to change colour palettes and grid patterns, as well as image brightness and contrast.

Simple power supply

The sight is powered by two standard CR123A batteries. When you find yourself in rough terrain, any commercially available powerbank can be connected to the unit via the micro-USB port.

Specification

Specifications of the Python TS75-640 AGM thermal imaging device
Detector type	Tau 2 filter 17 μm uncooled microbolometer
Viewfinder resolution	640 x 512 pixels
Start-up time	3 seconds
Lens arrangement	75 mm; F/1.0
Optical magnification	3×
Field of view (height x width)	8,3° × 6,6°
Digital zoom	1×, 2×, 4×, 8×
Detection range (object 6 ft)	1400 m/yard
Diopter adjustment range	-5 to +5 dpt
Exit pupil diameter	10 mm
Eye relief from viewfinder	45 mm
Focusing range	10 m to infinity
Display resolution	800 x 600 pixels
Video output	PAL (768 x 574 pixels) / NTSC (640 x 480 pixels)
Temperature imaging palettes	warm white warm black fusion rainbow globow ironbow1 ironbow2 sepia colour1 colour2 ice-fire rain OEM (original equipment manufacturer)
Instrument grid	variable sight pattern
Remote	wireless (switches the oscilloscope on/off in standby mode)
Interface	micro-USB (Powerbank 5 V) s620 universal interface (power input, analogue video input/output, Wi-Fi module, HD recorder, extended battery)
Battery type	Two CR123A 3V lithium batteries or two CR123 rechargeable batteries from 3.0 V to 3.7 V
Battery life (during operation)	up to 4 hours at 20°C
External power supply	power bank (5 V) via Micro-USB port Extended battery (6 V) or 6 V/600 mA power supply via S620 connector
Degree of protection	waterproof
Operating temperature	-40°C to +50°C (-40°F to +122°F)
Storage temperature	-50°C to +70°C (-58°F to +158°F)
Weight	0.79 kg (1.7 lbs)
Dimensions	227 × 71 × 78 mm (8.9 × 2.7 × 3.0 in)

Brand

AGM Global Vision

Based in Springerville, Arizona, USA, AGM Global Vision designs, develops and distributes a wide range of professional nocto- and thermal-imaging scopes, Clip-on systems for scopes, binoculars, goggles, multispectral lasers, as well as infrared lighting. AGM has opened up to the European market by creating skilled jobs there. AGM Global Vision is a growing leader in night vision and thermal imaging technology, recognized and respected by professionals and enthusiasts alike. With more than 65 years of experience, the AGM Global Vision team has contributed to the development of leading companies in the industry. Products are designed using state-of-the-art technology and durable materials, making them meet the needs and often exceed the expectations of users. AGM Global Vision strives for excellence and wants to be the only company you think of when you think of optics. AGM Global Vision offers a wide range of scopes, riflescopes, clips, binoculars, night vision scopes, goggles, lasers, infrared illuminators and other electro-optical systems for the most demanding gun, hunting, law enforcement or military users.
