Military goggles Armasight Nyx-7 Pro with helmet mount and image intensifier Generation 2+

  • Generation 2+ night vision goggles
  • Stable mounting - on head or helmet
  • High quality glass optics
  • Military goggles are able to operate in complete darkness
  • Durable and waterproof housing

Ask for availability

Availability: Waiting for deliveryOutOfStock

Add email

Options:


£1,787.80 tax excl. £2,199.00tax inc.

Add to cart
  • Print

More info

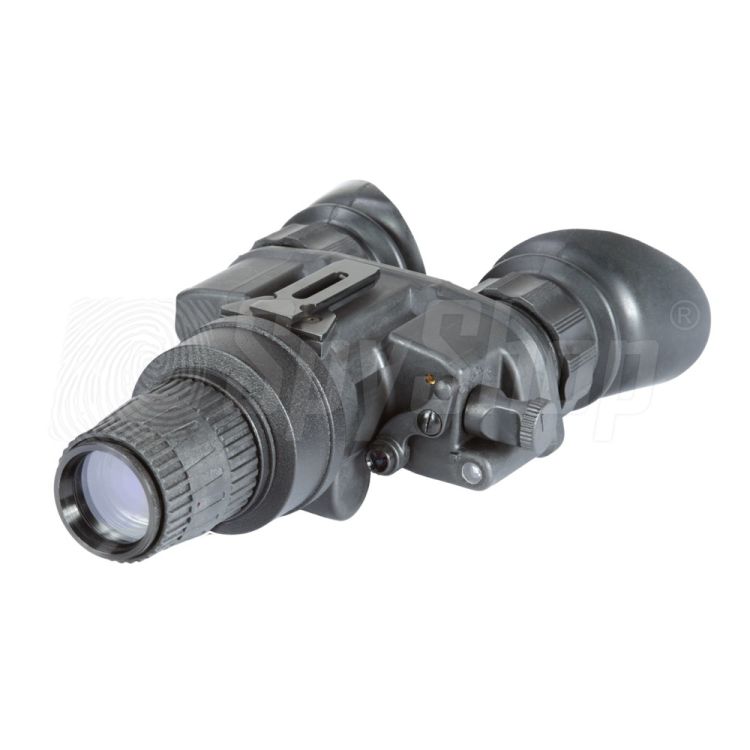

Armasight Nyx-7 Pro military goggles with image intensifier Generation 2+ and helmet mount

Nyx-7 Pro military goggles is an improved version of an extensively popular Armasight Nyx7 generation 2+ model. It is the best possible choice for both professionals and very demanding individual users. Perfect for military applications, police forces, security guards, or amateur purposes – such as hunting, or any other activity requiring night vision.

  • Resolution

    Resolution of the military goggles

    47 to 54 lines/mm

    65 to 70 lines/mm

  • Zoom

    Magnification

  • Resolution

    Work time of the military goggles

    up to 60 h

  • Waterproof

    Waterproof

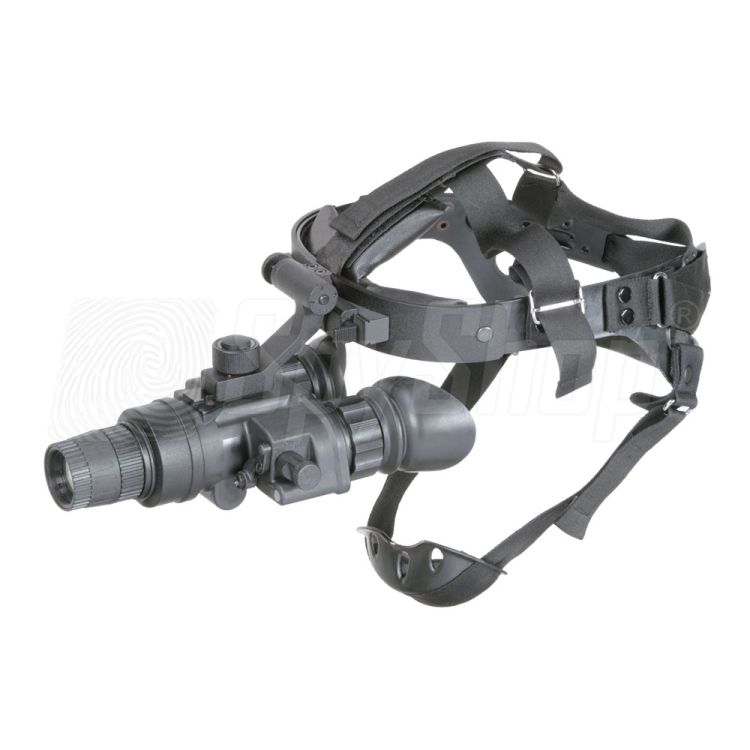

Designed as an advanced equipment military goggles, Armasight Nyx-7 Pro was designed for mounting on the operator's head (assembly included) or a helmet. Its construction allows to raise the device when not needed – it will stay raised and do not obstruct the operator's field of view. Bi-ocular sight facilitates observation and moving around with the night vision goggle on. An innovation in the Nyx-7 Pro military variant is its ocular system allowing to adjust their position without any moving elements (due to an internal prism system), which allows the device to remain completely waterproof.

The device is very versatile due to numerous external accessories, including additional  to  magnification, which allow to increase effective observation range. The Nyx-7 Pro night vision goggles can be used as an observation binocular as well. Armasight military goggles are available in several variants differing in image intensifier resolution, including devices utilising QuickSilver technology to provide grayscale image.

Armasight Nyx-7 Pro goggle is based on a generation 2+ image intensifier. It utilises intensifiers of non-standard construction, offering impact and mechanical damage resistance far superior to standard versions. Devices of this generations are known for their very high efficiency and ability to work even in very weak residual light conditions (e.g. during cloudy nights, with moon- and starlight scant and diffused). Due to use of an MCP plate (electronic system causing exponential increase in number of electrons in result of consecutive collisions with a micro-channel plate – every electron ejected from the photocathode is multiplied), it is possible to achieve light amplification factor as high as 50 000.

Military goggles for night vision use a number of technological solutions facilitating the operation of the device. Automatic brightness control enables operation in changing lighting conditions. The operator does not need to adjust image brightness manually – it is constantly kept on an optimal level. Bright light cut-off system will switch the device off should light intensity exceed safe level, protecting the Nyx-7 Pro military goggles from possible damage. Built-in short range IR illuminator allows to use the device even in conditions of complete lack of residual light. The military goggles are also compatible with high powered illuminators, which can greatly increase the device's effectiveness and allow for long range observation.

Lightweight, compact and versatile, equipped with a durable generation 2+ image intensifier providing clear and bright image, with completely waterproof construction without moving elements – Nyx-7 Pro night vision goggles is a device meant for professionals who can fully appreciate its capabilities.

Key features of the Armasight Nyx-7 Pro Gen 2+ military goggles

  • generation 2+ image intensifier
  • lightweight and compact goggles mount on the head or helmet
  • glass optics with multi-layer anti-reflective coating
  • compatible with wide angle infrared illuminator
  • able to work with long-range infrared illuminators
  • water resistance and moisture
  • two-year warranty
Specification of Armasight Nyx-7 Pro military goggles
* CR123A batteries
Image intensifier
  • generation 2+
  • version: ID, HD, QS
PhotocathodeMulti-Alkali
Resolution of the military goggles
  • ID: 47-54
  • HD: 65-70
  • QS: 65-70 (white phosphorus)
Magnification
  • optional lenses: 3× A-Focal, 4×, 5× A-Focal, 6×, 8×
Lens system27 mm, F / 1.2
FOV40°
Range of focus0.25m to ∞
Diopter adjustment-6 to +2
Anti-reflective coatingmultilayer
Total Darkness IRyes
IR indicatoryes (in FOV)
Power supply of the military goggles
  • 1 x CR123A 3V battery
  • 1 x AA 1.5V battery
Working timeup to 60 h (IR turned off)*
Low battery indicatoryes (in FOV )
Controllingdirect
Automatic brightness controlyes
Protection against bright lightyes
Automatic shut-off systemyes
Operating temperature-40°C to +50°C
Storing temperature-50°C to +60°C
Waterproof
  • yes
  • increased resistance to water and fog
  • MIL-810F norms
Dimensions of the military goggles165 × 117 × 75 mm
Weight0.48 kg
Inbox
  • Military goggles Armasight Nyx-7 Pro with helmet mount and image intensifier Generation 2+
  • Goggle Kit #2 head mount
  • CR123A battery
  • Adapter CR123A 3V / 1.5V AA
  • Lens tissue
  • Case
  • User manual
  • Warranty - 24 months

Additional accessories for the military goggles Armasight Nyx-7 Pro

  • IR850W Dovetail to Weaver Transfer Piece #21 – a compact, long range infrared illuminator with a wide beam angle.
  • XLR-IR850 Dovetail to Weaver Transfer Piece #21 – a long-range infrared illuminator, supplied with battery and charger.
  • XLR-IR A-Focal Doubler - 2x teleconverter for XLR-IR850doubling the illuminator's range.
  • Hard Shipping / Storage Case (F100) #101 – a carrying case for night-vision and infrared monoculars, binoculars and goggles.
  • 3× A-Focal Lens #23 (Spark, Sirius, N-7, Nyx7, Nyx7 Pro).
  • 4× A-Focal Lens (Nyx7).
  • 5× A-Focal Lens #23 with Adapter #23 (Spark, Sirius, N-7, Nyx7, Nyx7 Pro).
  • 6× A-Focal Lens (Nyx7).
  • 8× A-Focal adapter (Nyx7).
  • ARFS3 (Advanced Range Finding Stadia)- optical rangefinder for 3× A-Focal lenses.
  • ARFS4 (Advanced Range Finding Stadia) - optical rangefinder for 4× lenses.
  • ARFS4 (Advanced Range Finding Stadia) - optical rangefinder for 5× A-Focal lenses.
  • Helmet Mount #4.
  • Swing Arm #59 Mini Rail to Bayonet Mount (for attaching night vision goggles to Bayonet mounts on helmets and headgear).

Manufacturer

Armasight

Armasight is a flourishing small American company which is known for modern optical-electronic systems . Night-vision devices of great quality are designed by fiends who intend to construct basic devices for amateurs, but also night-vision devices, goggles and binoculars...

Specification

Specification of Armasight Nyx-7 Pro military goggles
* CR123A batteries
Image intensifier
  • generation 2+
  • version: ID, HD, QS
PhotocathodeMulti-Alkali
Resolution of the military goggles
  • ID: 47-54
  • HD: 65-70
  • QS: 65-70 (white phosphorus)
Magnification
  • optional lenses: 3× A-Focal, 4×, 5× A-Focal, 6×, 8×
Lens system27 mm, F / 1.2
FOV40°
Range of focus0.25m to ∞
Diopter adjustment-6 to +2
Anti-reflective coatingmultilayer
Total Darkness IRyes
IR indicatoryes (in FOV)
Power supply of the military goggles
  • 1 x CR123A 3V battery
  • 1 x AA 1.5V battery
Working timeup to 60 h (IR turned off)*
Low battery indicatoryes (in FOV )
Controllingdirect
Automatic brightness controlyes
Protection against bright lightyes
Automatic shut-off systemyes
Operating temperature-40°C to +50°C
Storing temperature-50°C to +60°C
Waterproof
  • yes
  • increased resistance to water and fog
  • MIL-810F norms
Dimensions of the military goggles165 × 117 × 75 mm
Weight0.48 kg

Inbox

  • Military goggles Armasight Nyx-7 Pro with helmet mount and image intensifier Generation 2+
  • Goggle Kit #2 head mount
  • CR123A battery
  • Adapter CR123A 3V / 1.5V AA
  • Lens tissue
  • Case
  • User manual
  • Warranty - 24 months

Additional accessories for the military goggles Armasight Nyx-7 Pro

  • IR850W Dovetail to Weaver Transfer Piece #21 – a compact, long range infrared illuminator with a wide beam angle.
  • XLR-IR850 Dovetail to Weaver Transfer Piece #21 – a long-range infrared illuminator, supplied with battery and charger.
  • XLR-IR A-Focal Doubler - 2x teleconverter for XLR-IR850doubling the illuminator's range.
  • Hard Shipping / Storage Case (F100) #101 – a carrying case for night-vision and infrared monoculars, binoculars and goggles.
  • 3× A-Focal Lens #23 (Spark, Sirius, N-7, Nyx7, Nyx7 Pro).
  • 4× A-Focal Lens (Nyx7).
  • 5× A-Focal Lens #23 with Adapter #23 (Spark, Sirius, N-7, Nyx7, Nyx7 Pro).
  • 6× A-Focal Lens (Nyx7).
  • 8× A-Focal adapter (Nyx7).
  • ARFS3 (Advanced Range Finding Stadia)- optical rangefinder for 3× A-Focal lenses.
  • ARFS4 (Advanced Range Finding Stadia) - optical rangefinder for 4× lenses.
  • ARFS4 (Advanced Range Finding Stadia) - optical rangefinder for 5× A-Focal lenses.
  • Helmet Mount #4.
  • Swing Arm #59 Mini Rail to Bayonet Mount (for attaching night vision goggles to Bayonet mounts on helmets and headgear).
