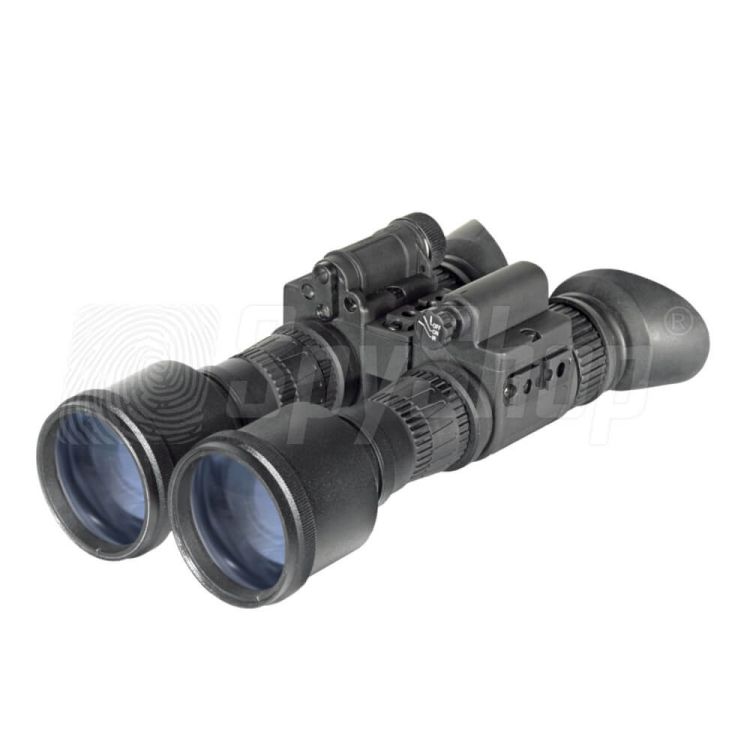

Tactical thermal goggles Armasight Nyx-15 Pro were equipped with IR illuminator as well as laser indicator, which allows for easier communication between the operating team members. Double converter allows for adjusting both eyes separetely.
min. 45-51 lines/mm
max. 65-70 lines/mm
1×
up to 40 h
Tactical thermal goggles Nyx-15 Pro are characterized by a wide range, which protect the device and from being damaged and provide additional functions. Small size, low weight and waterproof case allow for operation in hard atmospheric conditions.
Tactical thermal goggles Armasight Nyx-15 Pro Gen 2+ are available in two versions:
Advanced optics of Armasight Nyx-15 Pro offers 1-Zoom of the image.
The set with the night vision device contains installation system, whcih allows to install the goggles on the head. System flip-up enables operation of the device without the use of hands. Nyx-15 Pro might be installed either on a helmet or on head. The function of automatic shutdown after being put off allows for efficient energy saving.
The construction of the tactical thermal goggles Nyx-15 Pro is strengthened, waterproof and resistant to fog or salty water.
Tactical thermal goggles Armasight Nyx-15 Pro are equipped with two image converters, which provide great image quality with increased depth and high brightness of the image. This solution allow for long time of the operation without "tired eyes".
The amplifier of the device protects it from the strong light and at the same time minimizes the risk of being dazzled.
The tactical thermal goggles are powered with one battery CR123, which allows for operation up to 40 hours without the use of illuminator.
| Specification of the tactical thermal goggles Armasight Nyx-15 Pro Gen 2+ | |
|---|---|
| Image amplifier |
|
| Photocathode | Multi-Alkali |
| Rsolution (lines/mm) |
|
| Zoom | 1× |
| Lens | 27mm, F/1.2 |
| Angle of the view | 40° |
| Depth of field | 0,25m up to ∞ |
| Lens diameter of the tactical thermal goggles | 21 mm |
| Cover | anti-glare |
| Eyepiece with diopter adjustment | -6 up to +2 |
| System Total Darkness IR | yes |
| IR indicator |
|
| Operation time |
|
| Power supply of the tactical thermal goggles | 1 × CR123A battery, 3V |
| Discharge indicator |
|
| Laser indicator | yes |
| Steering | direct |
| Automatic brightness control | yes |
| Protection from dazzling light | yes |
| Automatic power supply shutdown | yes |
| Operation temperature | -40°C up to +50°C |
| Storage temperature of the tactical thermal goggles | -50°C up to +70°C |
| Waterproof |
|
| Size | 140 × 114 × 69 mm |
| Weight | 0,71 kg |
| Inbox |
|---|
| Specification of the tactical thermal goggles Armasight Nyx-15 Pro Gen 2+ | |
|---|---|
| Image amplifier |
|
| Photocathode | Multi-Alkali |
| Rsolution (lines/mm) |
|
| Zoom | 1× |
| Lens | 27mm, F/1.2 |
| Angle of the view | 40° |
| Depth of field | 0,25m up to ∞ |
| Lens diameter of the tactical thermal goggles | 21 mm |
| Cover | anti-glare |
| Eyepiece with diopter adjustment | -6 up to +2 |
| System Total Darkness IR | yes |
| IR indicator |
|
| Operation time |
|
| Power supply of the tactical thermal goggles | 1 × CR123A battery, 3V |
| Discharge indicator |
|
| Laser indicator | yes |
| Steering | direct |
| Automatic brightness control | yes |
| Protection from dazzling light | yes |
| Automatic power supply shutdown | yes |
| Operation temperature | -40°C up to +50°C |
| Storage temperature of the tactical thermal goggles | -50°C up to +70°C |
| Waterproof |
|
| Size | 140 × 114 × 69 mm |
| Weight | 0,71 kg |
Comment : IR illuminator and laser indicator constitute a great and useful pair when working in a team
