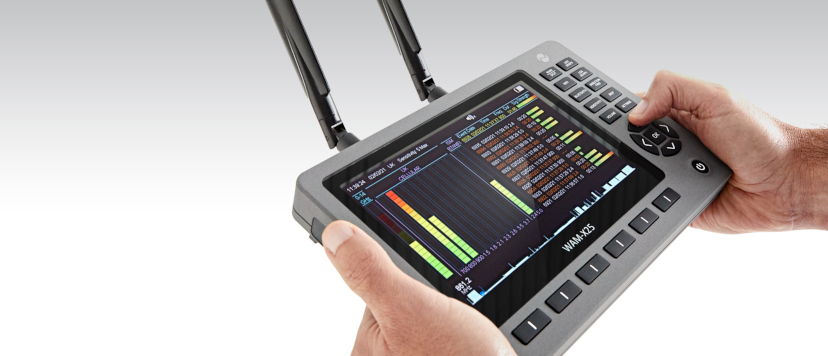

Handheld Wireless Activity Monitor JJN WAM-X25 0-14 GHz, 3G/4G/5G, WiFi, Bluetooth

The JJN WAM-X25 Wireless Activity Monitor is a compact tablet-style, multi-band Radio Frequency (RF) signal detector for handheld or desktop use. It is designed for detection and logging of transmissions from all types of radio frequency, even the latest 5G devices in the surrounding environment. Its uncompromising performance, very wide frequency range and high quality workmanship make it top of the range counter surveillance device.

What kind of devices is the WAM-X25 able to detect?

• all types of RF devices: audio and video bugs
• transmitters in the power grid and telephone lines
• wireless cameras, 3G/4G
• cell phones and GSM wiretaps
• GPS locators - when sending location information
• all kinds of transmitting equipment.

Wide frequency band support

The WAM-X25 detects signals from 0 to 14 GHz. It has separate 2.4 GHz and 5 GHz bands for detecting the fast-growing threat from Bluetooth/WiFi/Video and other latest generation ‘Store & Forward’ devices. They can record audio for long periods of time and then transmit it in regular, short bursts.

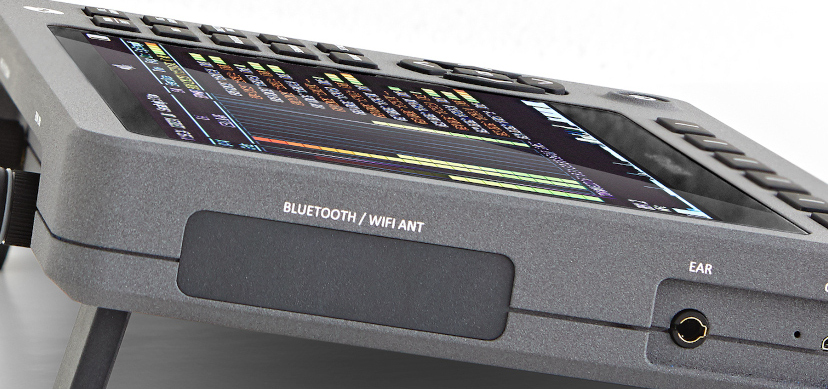

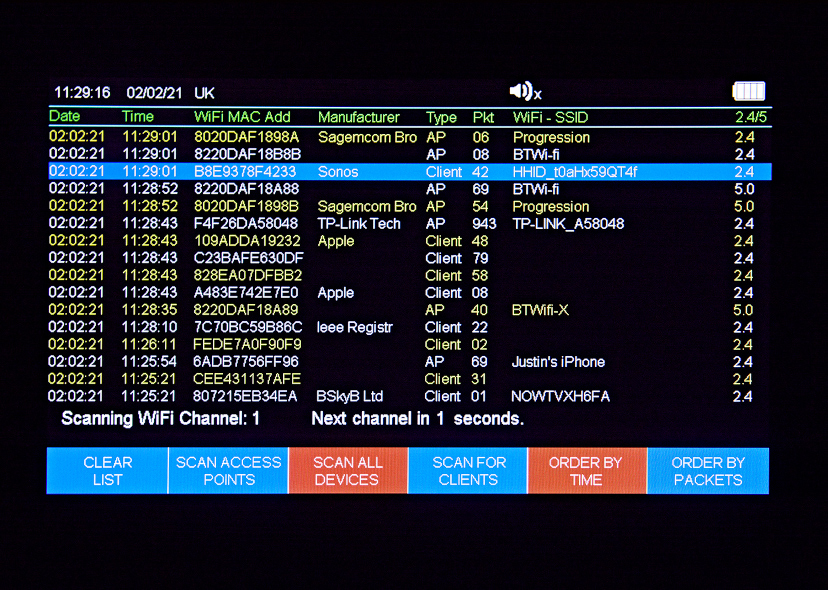

Comprehensive WiFi and Bluetooth analyser

The WAM-X25 is equipped with an independent wireless network (2.4 & 5GHz) analyser that provides detailed information about WLAN activity in the surrounding area, such as Hotspots, Routers, WiFi cameras. It also collects data on active Bluetooth devices. This includes the date and time of the event, WiFi MAC address, manufacturer, signal strength and number of data packets detected.

Global mobile network detection

What sets the WAM-X25 apart is its separate, worldwide cellular network coverage. It automatically adjusts to the GSM frequency of the country in which it is located. It identifies and recognizes 2G, 3G, 4G and 5G technologies. All activity is recorded and available for review at any time.

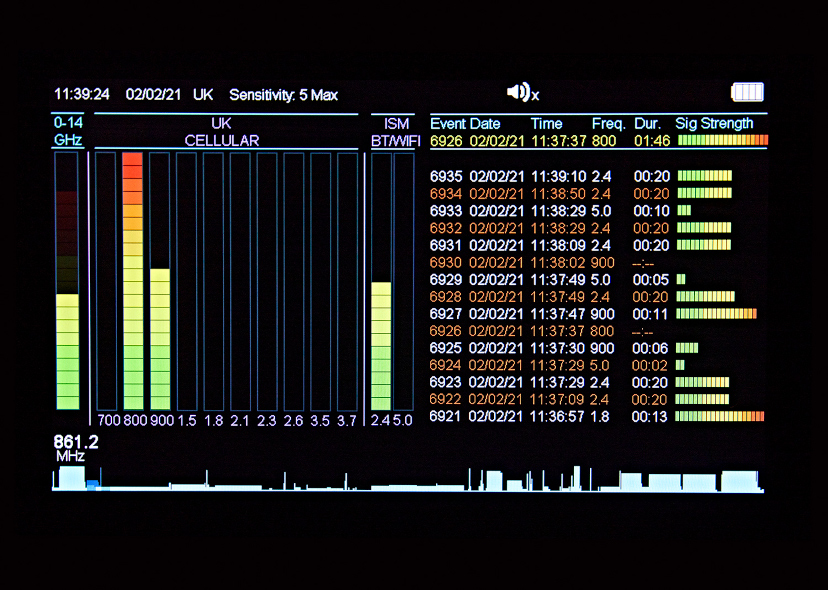

Graphical reading of signals

The "Livescan" software provides a real-time graphical view of the detected signal, which helps identify the type of signal. This feature is particularly useful when searching for devices such as GPS locators.

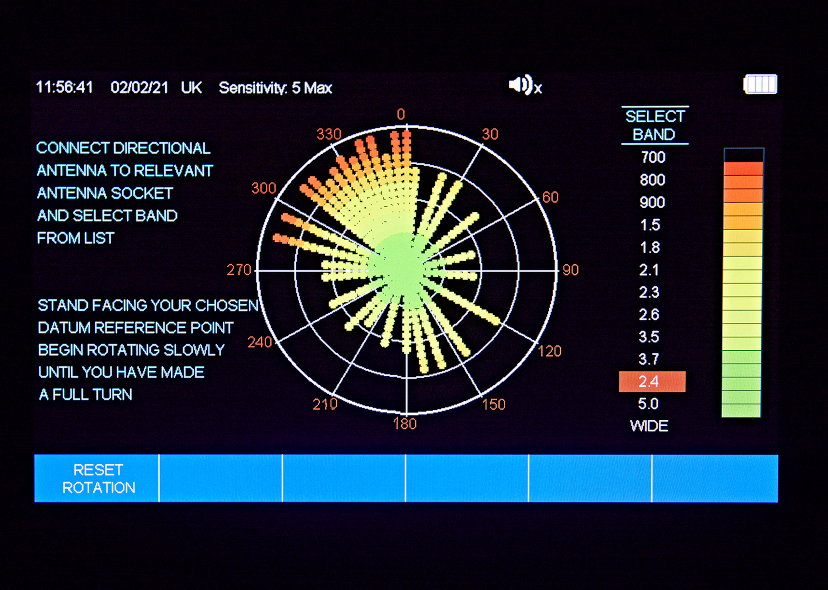

Locating the source of the signal

The detector comes with two antennas: an omnidirectional antenna and a directional antenna, which is used to precisely track high-frequency signals from a greater distance. The device's slow 360-degree rotation allows it to gather signal strength information and present it graphically to pinpoint its source to the user.

Memory for up to 10,000 events

The memory log stores up to 10,000 events. Each detected signal, regardless of its length, is accompanied by information about the date, time and duration, the type of band detected and its strength. The list of events allows identification of found devices and subsequent analysis. The log can be downloaded to a USB flash drive.

Convenience of use

The device is simple and intuitive to use. The color TFT 7.0. display with high resolution and contrast, simultaneously shows the detected signals and gives a preview of the events that took place earlier. The audible "beep" mode allows monitoring without looking at the screen. In turn, the ability to enable silent vibration guarantees full detection discretion.

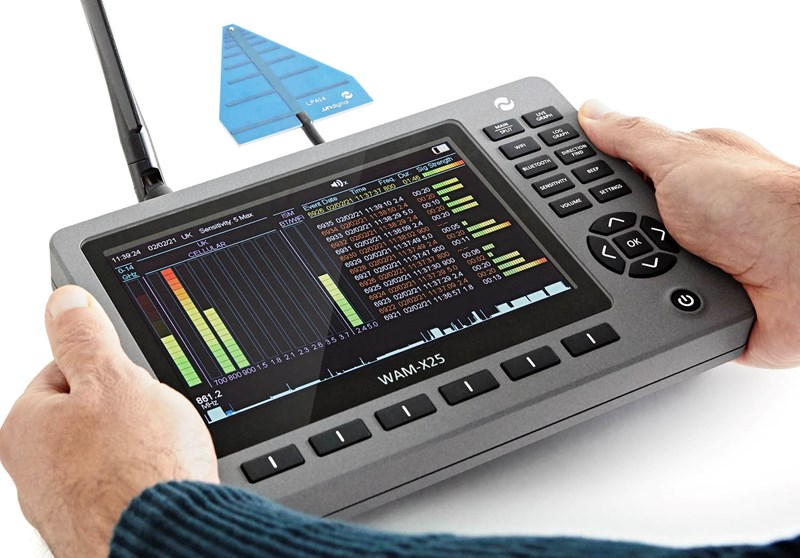

Robust case

In appearance and size, the WAM-X25 detector resembles a tablet. It is made of durable aircraft-grade aluminum. Maximum protection is guaranteed by a rugged, military-grade carrying case. The battery takes 4 hours to charge and allows the device to operate for up to 8 hours.

W skład zestawu z urządzeniem WAM-X25 wchodzi:

• 2 adjustable and omnidirectional antennas,
• 1 directional precision antenna,
• headphones,
• 5V AC adapter with international adapters,
• handy USB memory stick,
• tranport case that meets military standards.

The most interesting features of WAM-X25

• Detects all 2G/3G/4G and even 5G devices along with WiFi / Bluetooth / 2.4 GHz & 5 GHz transmissions
• Detection of cell phones, smartphones, GPS locators, SMS messages, GSM signals, video transmiions, WiFi and Bluetooth devices
• Worldwide cellular coverage
• Detection of radio transmissions in the 0-14 GHz range with audio demodulation
• Separate WiFi 2.4 and 5 GHZ detector
• Analyzer of detected WLAN and Bluetooth networks
• Memory for up to 1000 detected events
• Possibility of saving events on external USB
• Easy to read 7" LCD screen
• Graphic mode showing historical as well as live events
• Omnidirectional and directional antennas
• Housing made of durable aluminum

Designed and manufactured in Great Britain

Video product presentation

Downloadable materials

• DATASHEET [EN]

  Data sheet for the WAM-X25 radio activity monitor

  ­
