Advanced Near-field Transmissions Detection ANDRE Kit for broadband signals reception

Advanced Near-field Transmissions Detection ANDRE Kit for broadband signals reception

Reviews :

Brand:

Research Electronics International (REI)

Reference:

59052102

Highly sensitive
Portable construction
Signal strength histogram
Audio mode
3.5” display

Advanced Near-field Transmissions Detection ANDRE Kit for broadband signals reception

Ask for price

Delivery from Check the shipping costs

Do you need advice? Write to us

You dont know if you chose right? Leave your phone number and we will call you back

Description

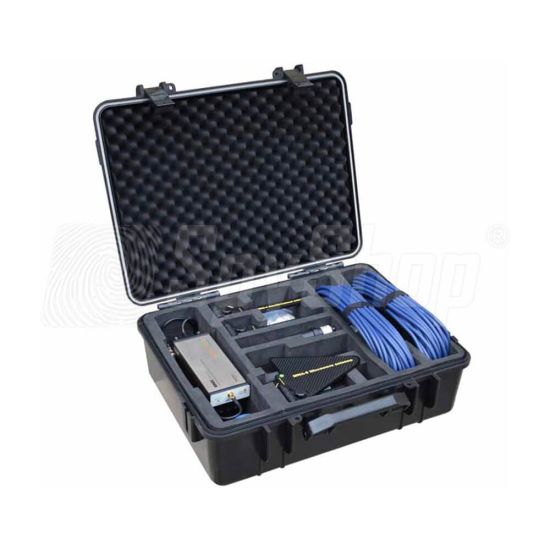

ANDRE Kit Advanced Near-field Transmissions Detector for broadband signals reception

Advanced Near-field Transmissions Detection ANDRE Kit is a system for receiving of broadband radio transmission.

The advanced Near-field Transmissions Detection Kit specializes in picking up a variety of signals such as RF, visible light, infrared, carrier current and many others. The Near-field transmissions detection ANDRE kit is able to recognise signals in frequencies form 1kHz to 6GHz thanks to included accessories. The device is equipped with 3.5'' touch screen , which is simple in operation and an USB port for data transfer.

The advantages of the Advanced Near-field Transmission Detection ANDRE Kit:

Colourful display, which makes the operation simple and intuitive;
Providing the detailed information about the signal (the list of the strongest signals, the signals can be labeled as friendly or unknown);
Audio mode: The audio files with length of 10 seconds can be recorded and stored. Additional graph on the display shows the signals' strength;
Post-investigation resources - ANDRE Kit can help in further investigations as it produses charts, screensots of the collected data;
For parents who are concerned about safety of their children in the Internet,
Zoom View* that shows 30 dB enhanced signal strength window
Live audio or signal tone available while viewing histogram
Attenuation/gain adjustment controls on the main screen
Improved signal merging
Intuitive and readable display

Specification

Specification of the Advanced Near-field Transmissions Detection ANDRE Kit for broadband signals reception
Rf detector sensitivity:	-75 dBm for 3 GHz frequency -85 dBm for probes providing frequency at 500 MHz
Stepped attenuation control:	30 dB 20 dB 10 dB Auto off
Built-in speaker and external headphones with adjustable volume control	Yes
Display	3.5” (4 cm) capacitive touch screen
Input/output	USB data port for software upgrades and file transfer
Power	Input: USB internal charger Batteries: 3400 mAh lithium-ion rechargeable battery (2 included), USB recharger Run time: >5 hours (typical)

Brand

Research Electronics International (REI)

Research Electronics International (REI) was founded in 1983 in Cookeville, Tennessee USA. REI's customers include government agencies, law enforcement agencies, security companies and professionals involved in surveillance security and protection of confidential information. REI engineers are focused on designing compact products with superior performance and usability. New products are based on the experience of professional teams. The wide range of devices includes equipment such as surveillance device detectors, jammers, high-end cameras and electromagnetic spectrum analyzers.
